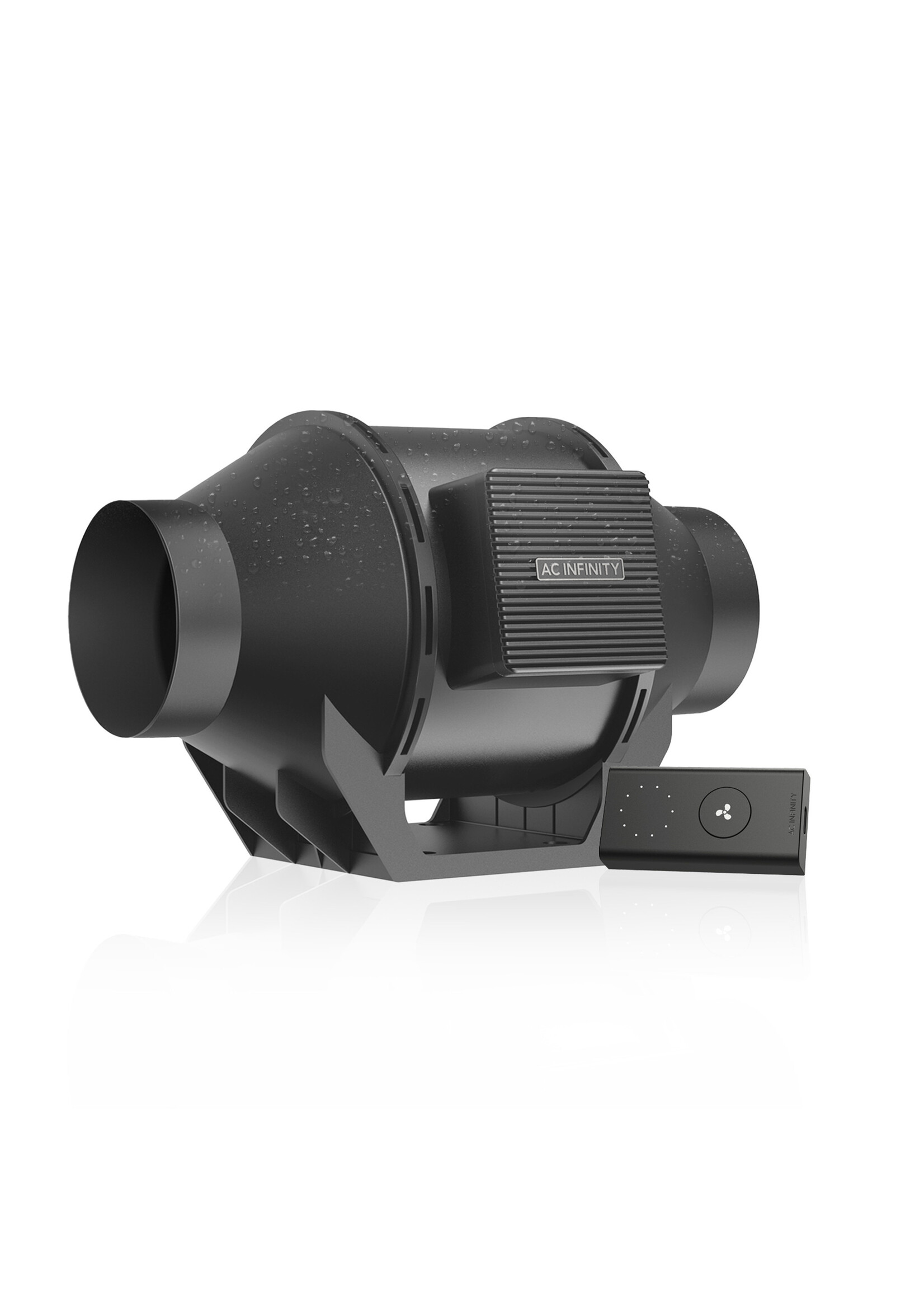

AC Infinity CLOULINE H4 Inline Fan for Fungiculture IP65 4 Inch

Availability: In stock (1)
Delivery time: In Stock
  • Specially designed for mushroom growing to quietly ventilate grow spaces and help control indoor climate levels.
  • IP65-rated to ensure performance in high-humidity spaces while resisting dust, debris, and moisture.
  • Includes a fan speed controller with precise 10-level control for exact airflow and CO2 buildup prevention.
  • EC motor with PWM control enables quiet and energy-efficient performance for consistent fresh air exchange.
  • Duct Size: 4" | Dimensions: 6.9 x 11.9 x 7.4 in. | Airflow: 212 CFM | Noise: 27 dBA | Bearings: Dual Ball

Product Description

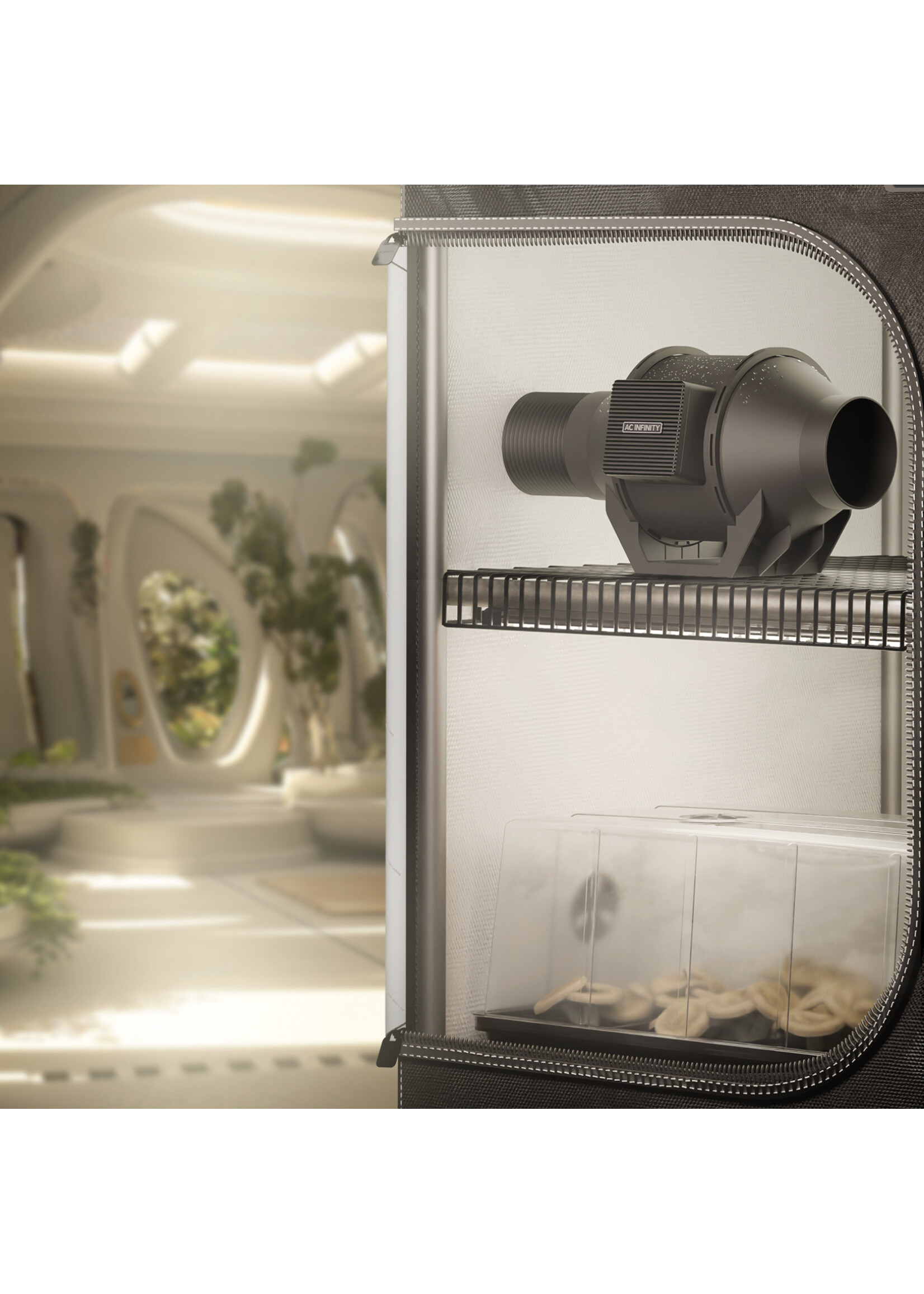

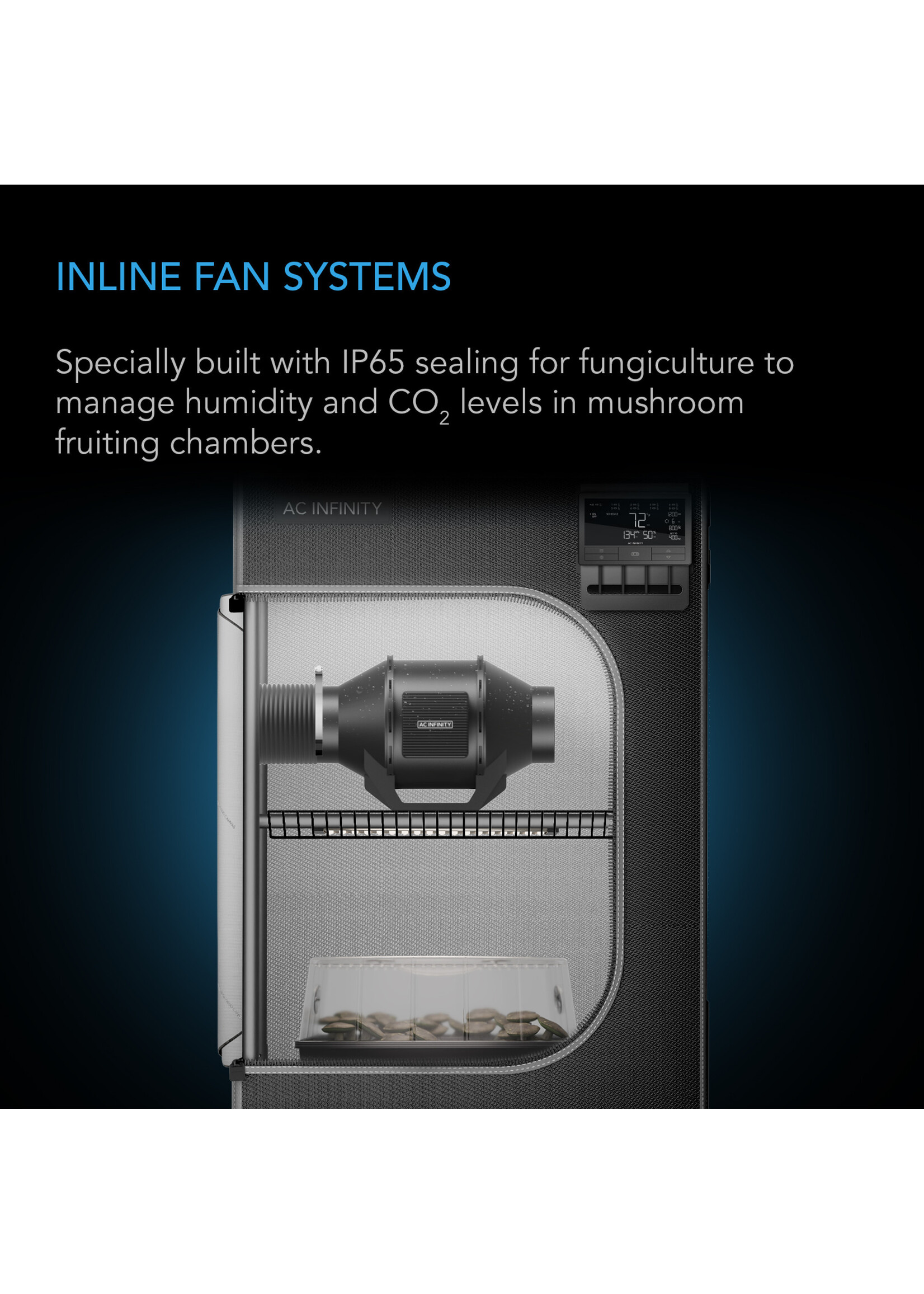

An inline duct fan specially designed for mushroom cultivation to quietly ventilate grow tents, grow rooms, and mushroom fruiting chambers. By installing this fan, you can control humidity and CO2 levels to keep them stable while ensuring fresh air exchange in these spaces. It is built with IP65-level sealing that lets you place it in harsh environments, resisting moisture and spores. It also features a fan speed controller with 10 exact levels to produce your ideal airflow. This precision output is powered by the inline fan’s EC motor that utilizes PWM control to operate quietly and energy-efficiently. This product is a part of the UIS™ platform of grow devices and smart controllers, designed to unite with the AC Infinity app over WiFi to achieve your ideal environment.

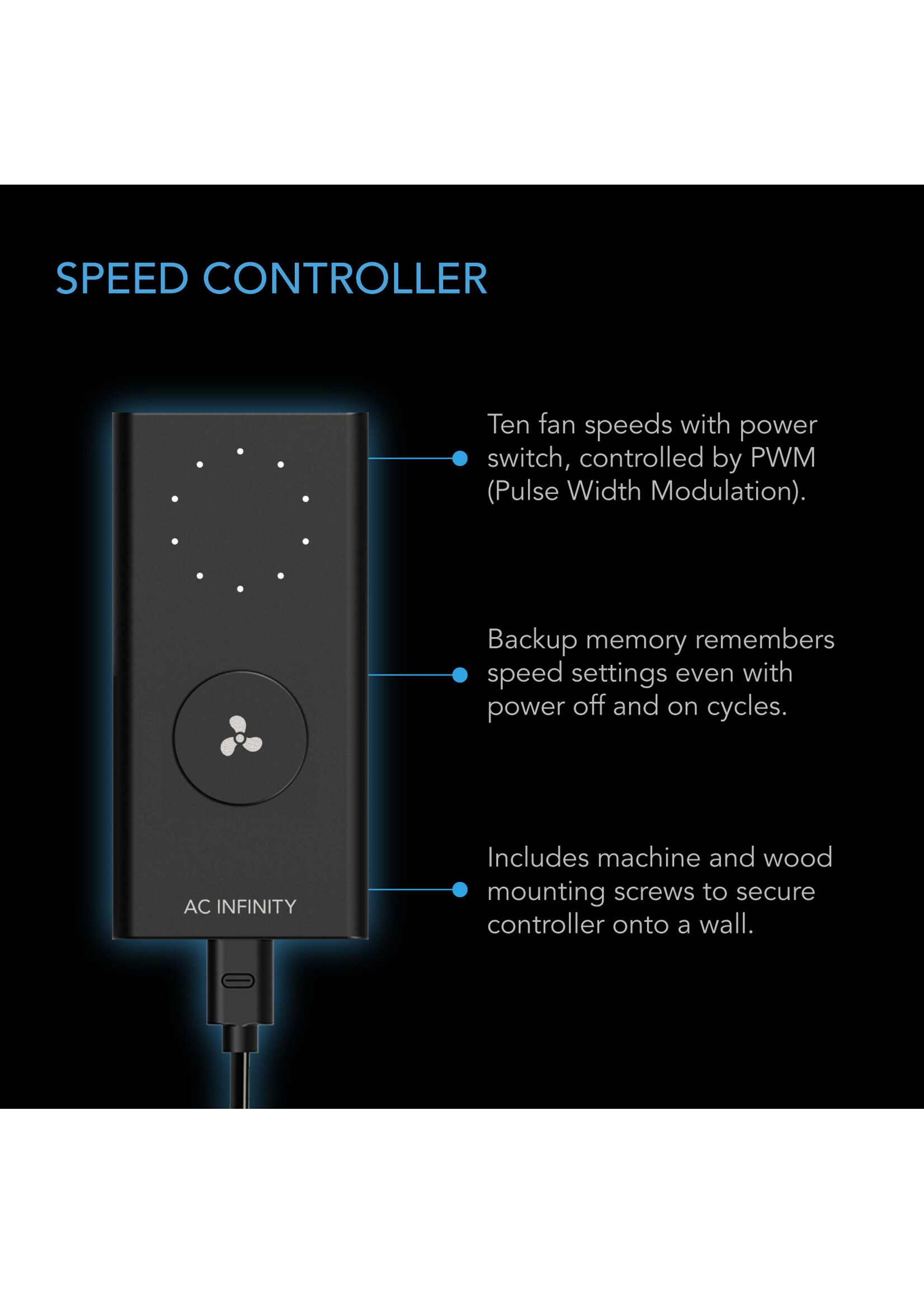

Precise Speed Controller

The speed controller lets you set between ten precise fan speed levels to optimal noise and airflow levels in mushroom-growing environments. This exact airflow control is enabled by the cutting-edge EC motor that is precisely controlled using PWM (Pulse Width Modulation). This allows it to run smoothly at extremely low RPM speeds without generating motor noise. It also features backup memory that retains the last speed setting whenever power is cut off from the controller.

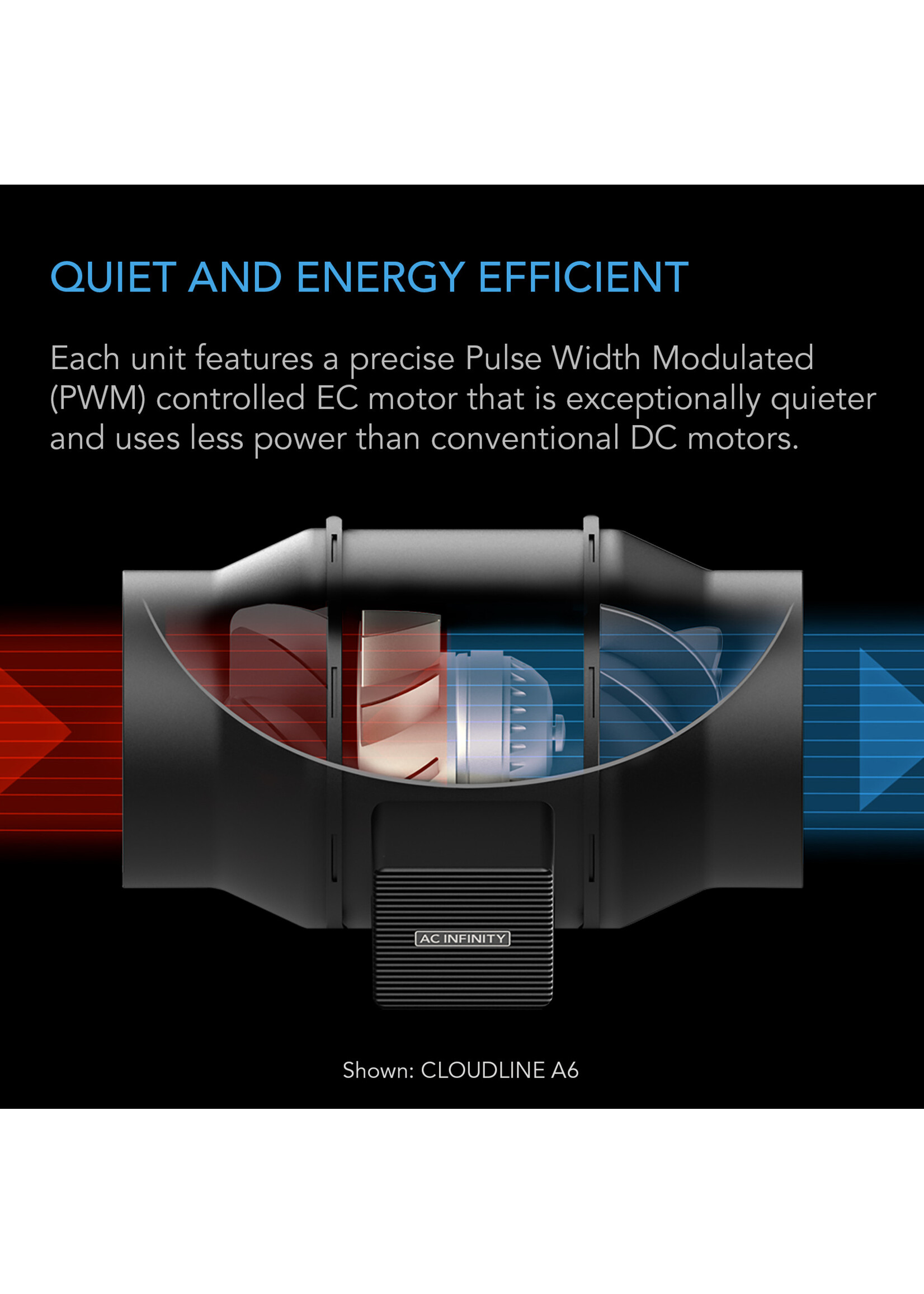

Quiet and Energy-Efficient Design

This inline fan utilizes a mixed-flow design with a stator blade and dual hydrodynamic wind circles, enabling it to deliver airflow even in applications where air movement is restricted. In addition, it is built with dual ball bearings that have a 67,000-hour lifespan, allowing you to mount it in any direction. The motor box containing the fan’s impeller and blades can be detached from the mounted frame for easy cleaning and maintenance.

  Product Identification
   Manufacturer    AC Infinity Inc.
   Product Name    CLOUDLINE H4
   Product Model    AI-CLH4
   UPC Code    819137024595

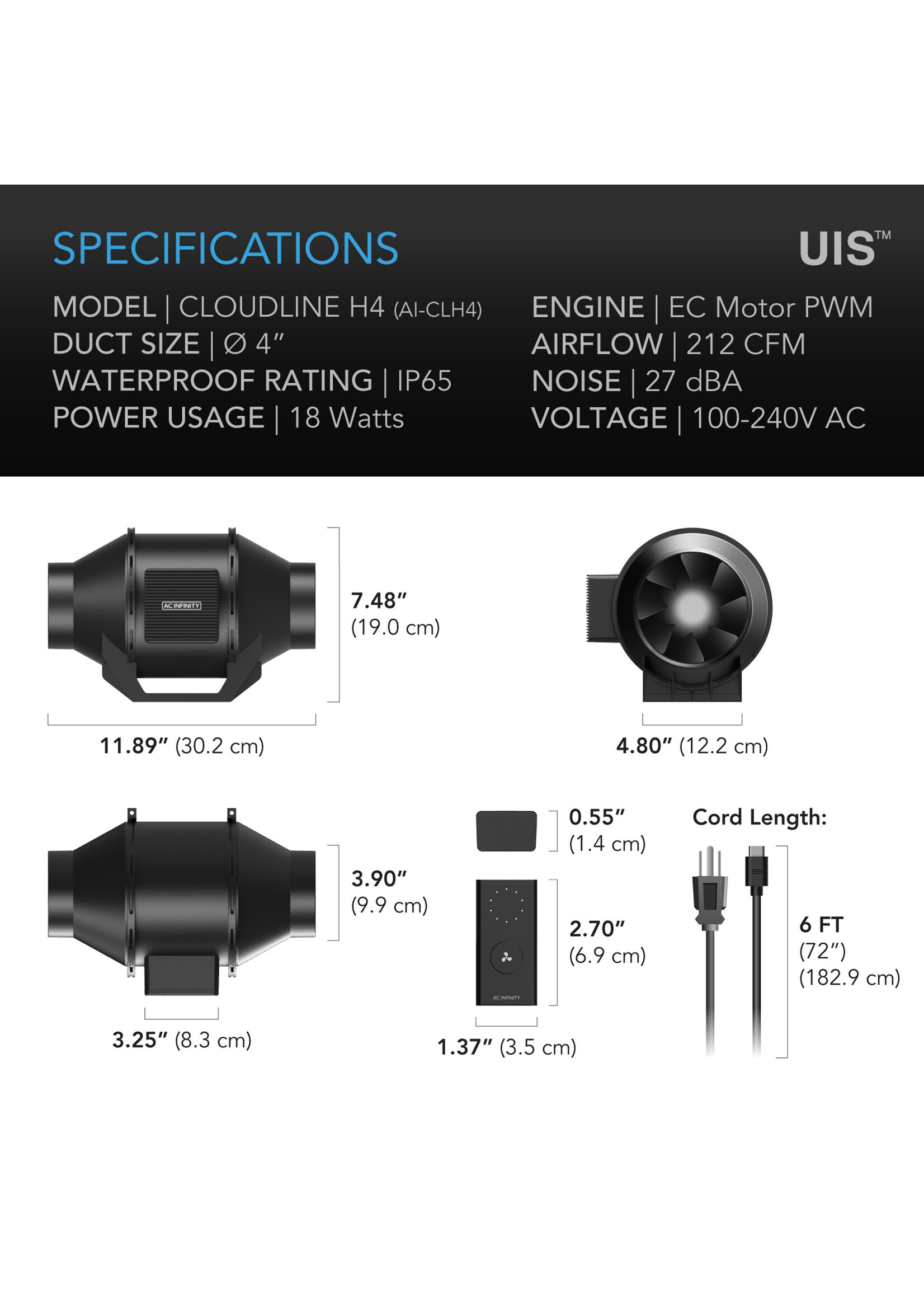

   Product and Mounting Dimensions - Fan Unit
   Duct Size    4"
   Total Dimensions    7.48 x 11.89 x 6.93 in. (19.0 x 30.2 x 17.6 cm)
   Mounting Hole-To-Hole Distance    3.15 x 2.36 in. (8.0 x 6.0 cm)
   Screw Hole Size    Ø 0.197 in. (Ø 0.5 cm)
   Cord Length to Controller    72 in. (6 feet)
   Cord Length to Plug    72 in. (6 feet)
   Product and Mounting Dimensions - Controller
   Total Dimensions    3.34 x 2.95 x 0.51 in. (8.5 x 3.6 x 1.3 cm)
   Product Performance and Technical Specs
   Total Airflow    212 CFM
   Total Noise    27 dBA
   Max Speed    3000 RPM
   Static Pressure    324 Pa
   Voltage    100-240V AC
   Frequency    50/60Hz
   Max Power Draw    35 W
   Average Power Usage    18 W
   Current    0.55 A
   Power Connector Type    US Plug (NEMA 1-15 Type-A)
   Operating Humidity    35 to 85% RH
   Operating Temperature    32 to 140°F
   Ingress Protection    IP 65
   Fan Bearings    Dual Ball
   Mounting Positions    Horizontal or Vertical
   L10 Life Expectancy    67,000 Hours
   ETL Cert. (Whole Product)
   CE Certification (Whole Product) PDF
   RoHS Cert. (Whole Product)
   Installation Manual PDF
   IC Cert. (Whole Product)
   CE Certification (Whole Product) PDF
   Product Manual
   Product Manual
   Product Manual PDF
