AirGrean Mini Split 3 TON or 36,000 BTU Heating & Cooling Air Conditioner

• ECO Mode – Innovative ECO Mode, air conditioner will run into an 8-hour saving mode which cuts 60% energy off against normal mode.
• Turbo Mode – A boost in cooling and heating power for a period, rapidly cooling down or heating up a room.
• High Density Filter – Compared with regular dust filter, this high density filter can filter dust 50% more, filter pollen 80% more.
• WIFI Control ( Smart APP Control) – Control the AC with Smart phone  through Wi-Fi by the mobile devices.
• Louver Position Memory Function – Horizontal louver will automatically move to the same position as you set last time when the unit turned on.
• Anti-cold Air Function – Indoor fan speed is regulated automatically from the lowest grade to the setting grade according to evaporator temperature during startup of heating operation. This function prevents cold air blowing out to avoid discomfort in Heating mode.
• Self-cleaning – Indoor unit continue running at special combined mode to blow and dry indoor evaporator after the unit switched off to keep the unit clean.
• Temperature Compensation – This function automatically revises temperature difference between floor temperature and temperature at indoor unit heights for more accurate temperature control.
• Auto Swing – Distributes cool/warm air to maximum area by moving flaps horizontally.
• Leakage Detection – Display EC when refrigerant leaks.
• Self-diagnosis and Auto-protection – When unit operates abnormally, the unit will shut off automatically for system protection, error code will be displayed.
• Fire-proof Electric Box – Electrical control box’s new design meets higher fire safety requirement to prevent the internal fire.
• Golden Fin Condenser – Unique anti-corrosion coating on the condenser able to withstand extreme weather condition, prevent bacterial breeding and improve heat transfer efficiency.
• Intelligent defrost – Depending on the environment temperature and the pipe temperature automatically defrost.
• Timer, Auto Start available.
•

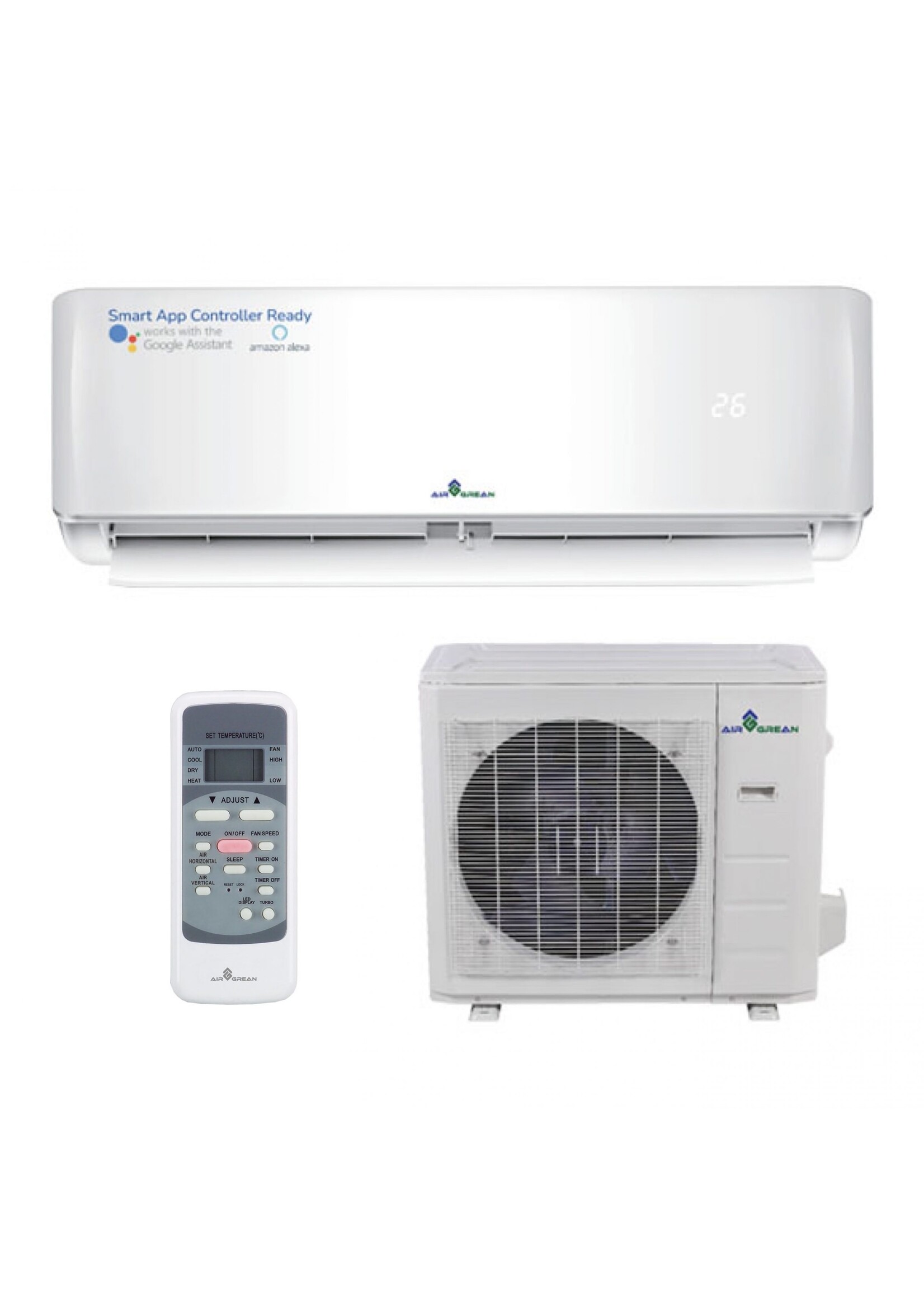

SINGLE ZONE 17 SEER INFO:

AirGrean Mini Split 36,000 BTU SEER 17 has high comfort more reasonable air circulation, more uniform indoor temperature. Saves space highlight the decoration grade: avoid the same as the cabinet machine to occupy the indoor space outdoor unit "on-demand output", so that the compressor is always in the best working conditions, low power consumption. The long life of household wall-mounted air conditioners is between 15-20 years.

BTU Cooling: 36000

BTUTYPE: Wall Mounted

EER: 8.5 Btu/hr/W

SEER: 17

Cooling Input: 4235 W

Cooling Current: 18.5 A

Refrigerant: R410A

Power Supply: 208/230v, 60Hz, 1PH

Liquid Line Set /Suction Line Size: 3/8″ – 5/8″

Connection Method: Flare

Remote Control: Yes

Dimensions LxWxH (in) Indoor Unit:49.57 x 11.10 x 14.25 in Outdoor Unit: 37.24 x 16.14 x 31.89 in

Weight Indoor Unit: 53.35 lbs Outdoor Unit: 157.63 lbs

Warranty1 Year Parts, 5 Year compressor

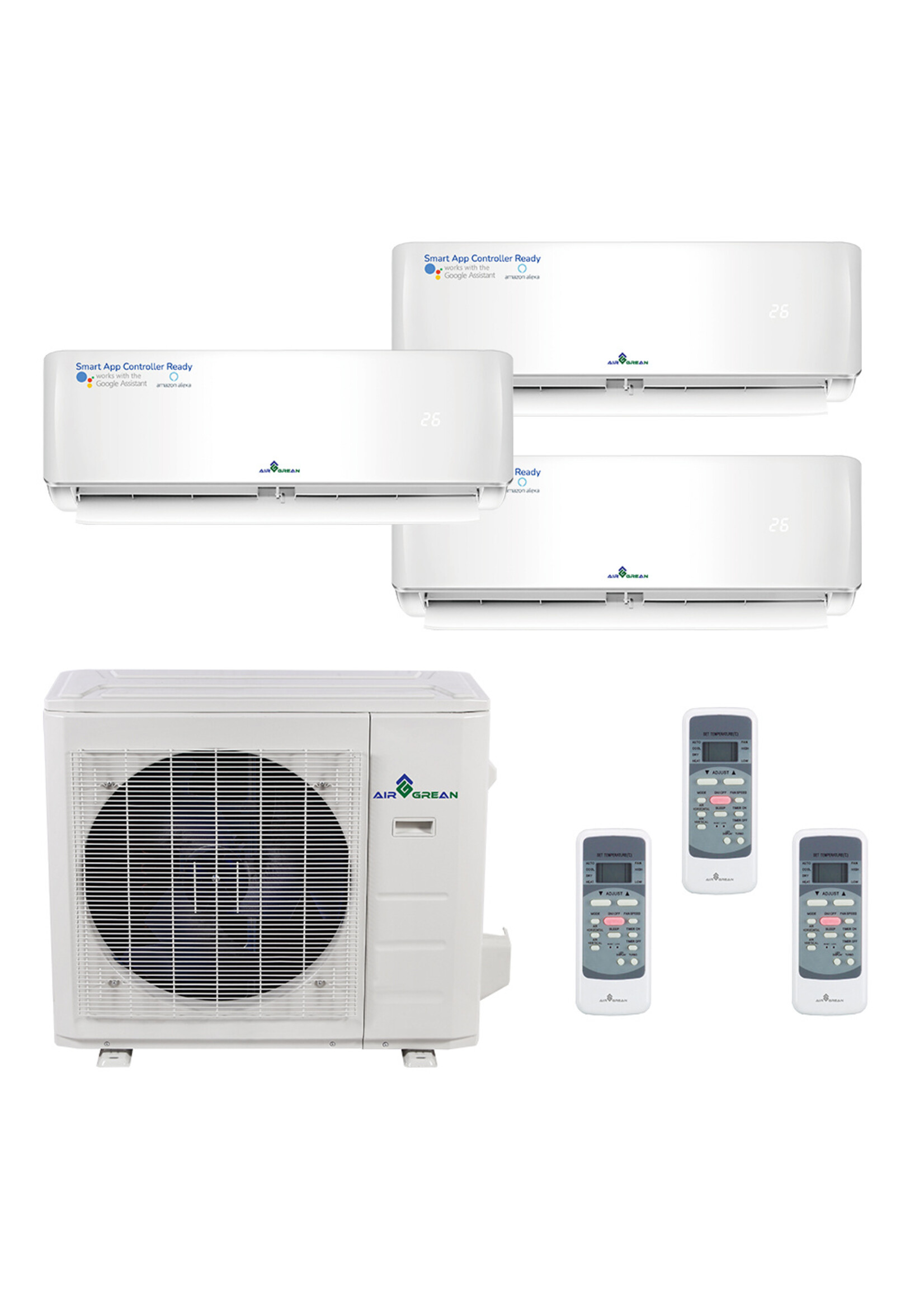

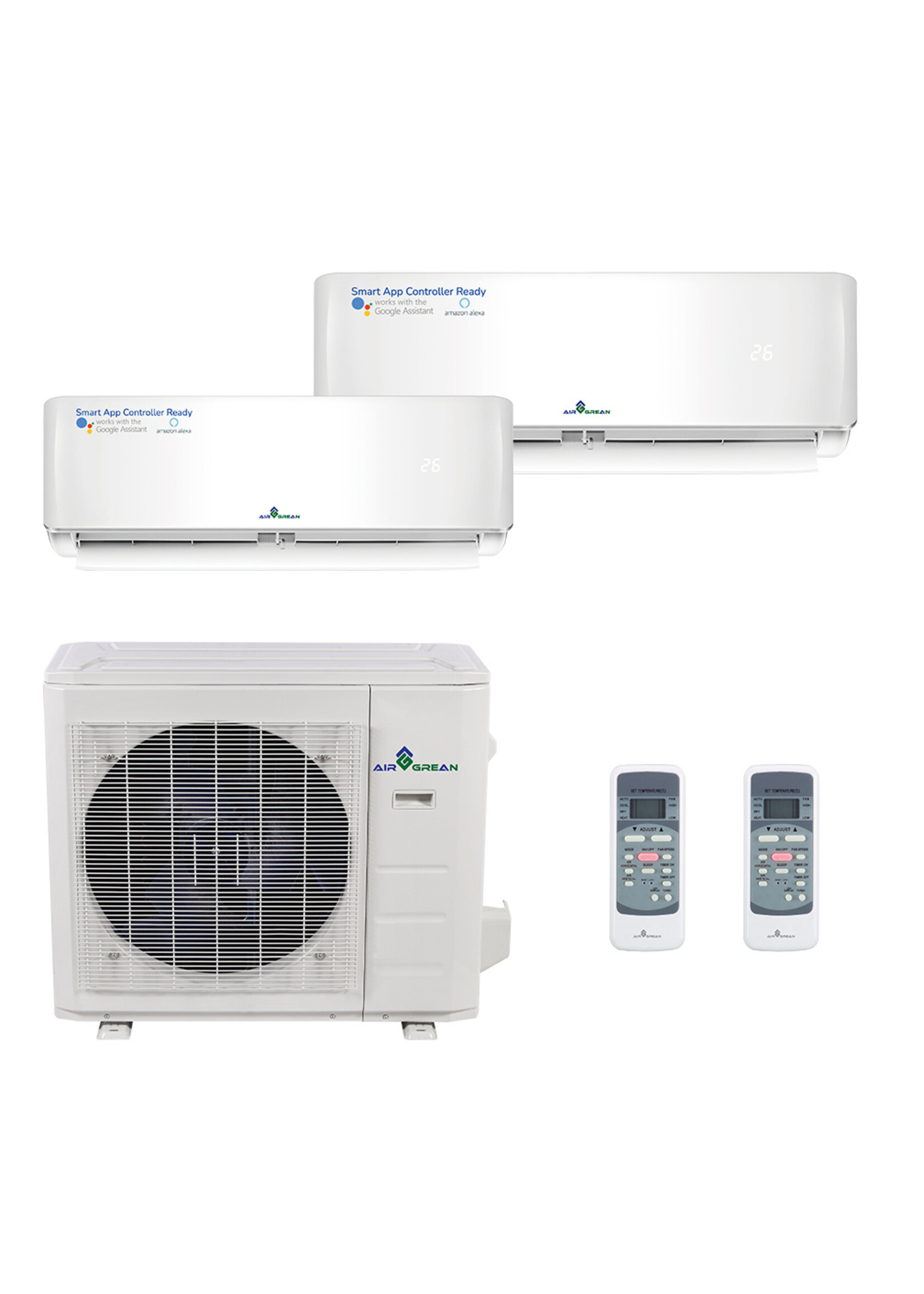

2-3 ZONE 22 SEER WALL UNIT SPECS

Model: #AG-MO36IR410AHBTU

Cooling: 36,000 BTU

TYPE: Wall Mounted

EER: 11.5

SEER: 22.5 SEER

Refrigerant: R410A

Minimum Circuit Ampacity: 30A

Max Fuse: 45A

Power Supply: 208/230V, 60Hz, 1PH

Zone: 2-3 Zone

Liquid Line Set / Suction Line Size:

12,000BTU -1/4″ -1/2″

24,000BTU – 3/8″ – 5/8″

Connection Method: Flare

Control Type: Remote Controller

Dimensions LxWxH (in): Indoor Unit Varies

                                    Outdoor Unit37.24×16.1×31.89inch

Weight Indoor Unit: Varies

           Outdoor Unit:156.53 lbs

Warranty1 Year Parts, 5 Year Compressor

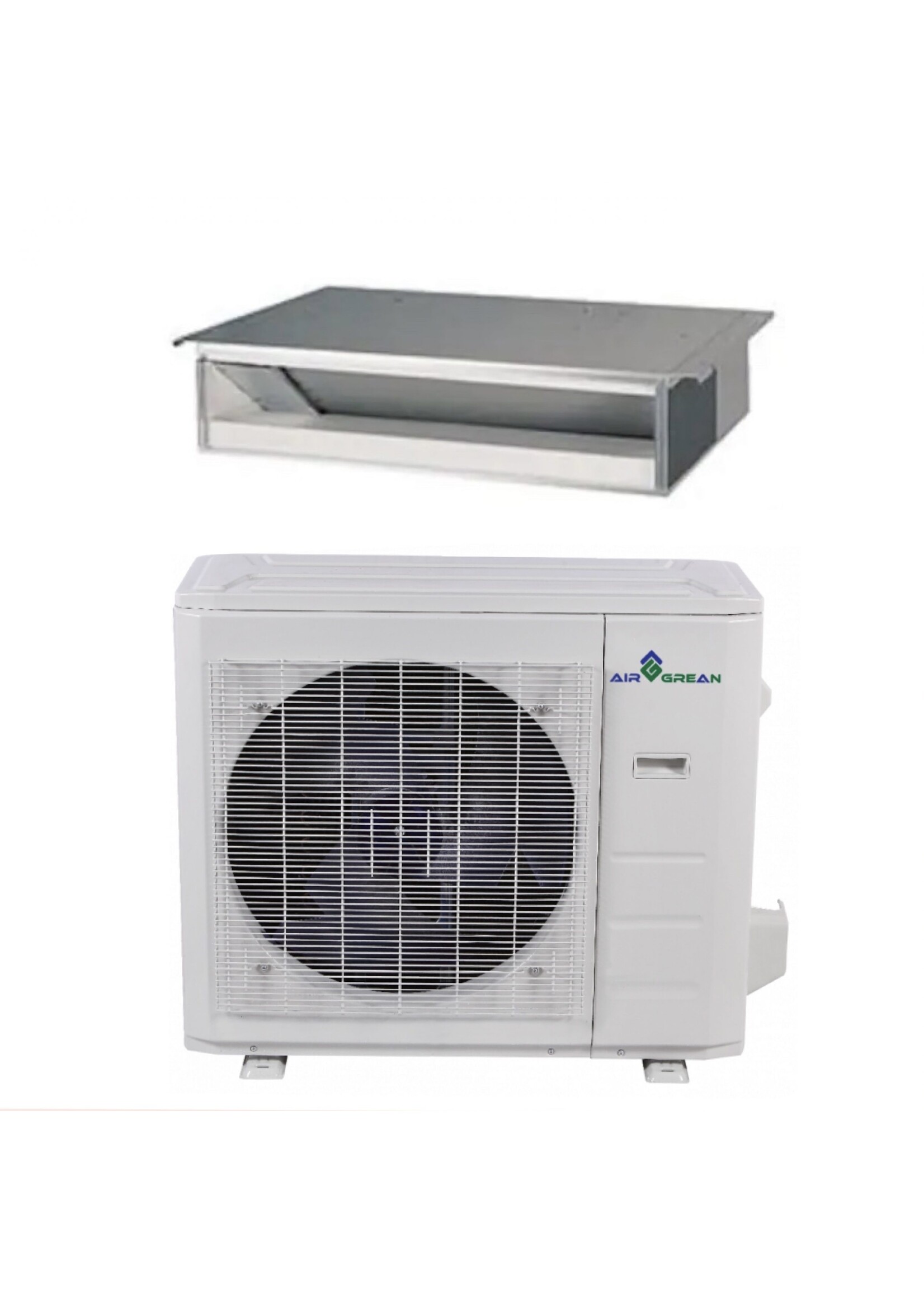

Concealed Duct SPECS:

Model			36,000 BTU
Power supply	Voltage type	/	208-230V,1Ph
	Supply frequency	/	60Hz
Max.Input consumption	Max.Input consumption	W	4800
Max.Current	Max.Current	A	23
Min. Circuit ampacity	Min. Circuit ampacity	A	35
Max.Fuse	Max.Fuse	A	50
Compressor	Capacity	W	9490
	Input	W	2600
	Rated current	A	5.1
	Rated current(Certification)	A	/
Outdoor Fan motor	Input	W	150.0
	RLA (Rated current)	A	1.39
	RLA (Certification)	A	/
	LRA (Locked rotor amp)	A	/
	Winding resistance	Ω	/
	Speed(High/Mi/Low)	r/min	950/750
Outdoor side air flow(Hi)	Outdoor side air flow(Hi)	m3/h	2529
		CFM(ft3/min)	1487.65
Dimension(W*D*H)	Body_Width(W)	inch	37.24
	Body_Depth(D)	inch	16.14
	Body_Height(H)	inch	31.89
Packing(W*D*H)	Packing_Width(W)	inch	42.91
	Packing_Depth(D)	inch	19.69
	Packing_Height(H)	inch	34.45
Net/Gross weight	Net weight	lb	148.59
	Gross weight	lb	160.94
Refrigerant	Refrigerant type	/	R410A
	Refrigerant charge	/	108
	Refrigerant charge unit	/	ozs
	Additional refrigerant per metre	g/m	30

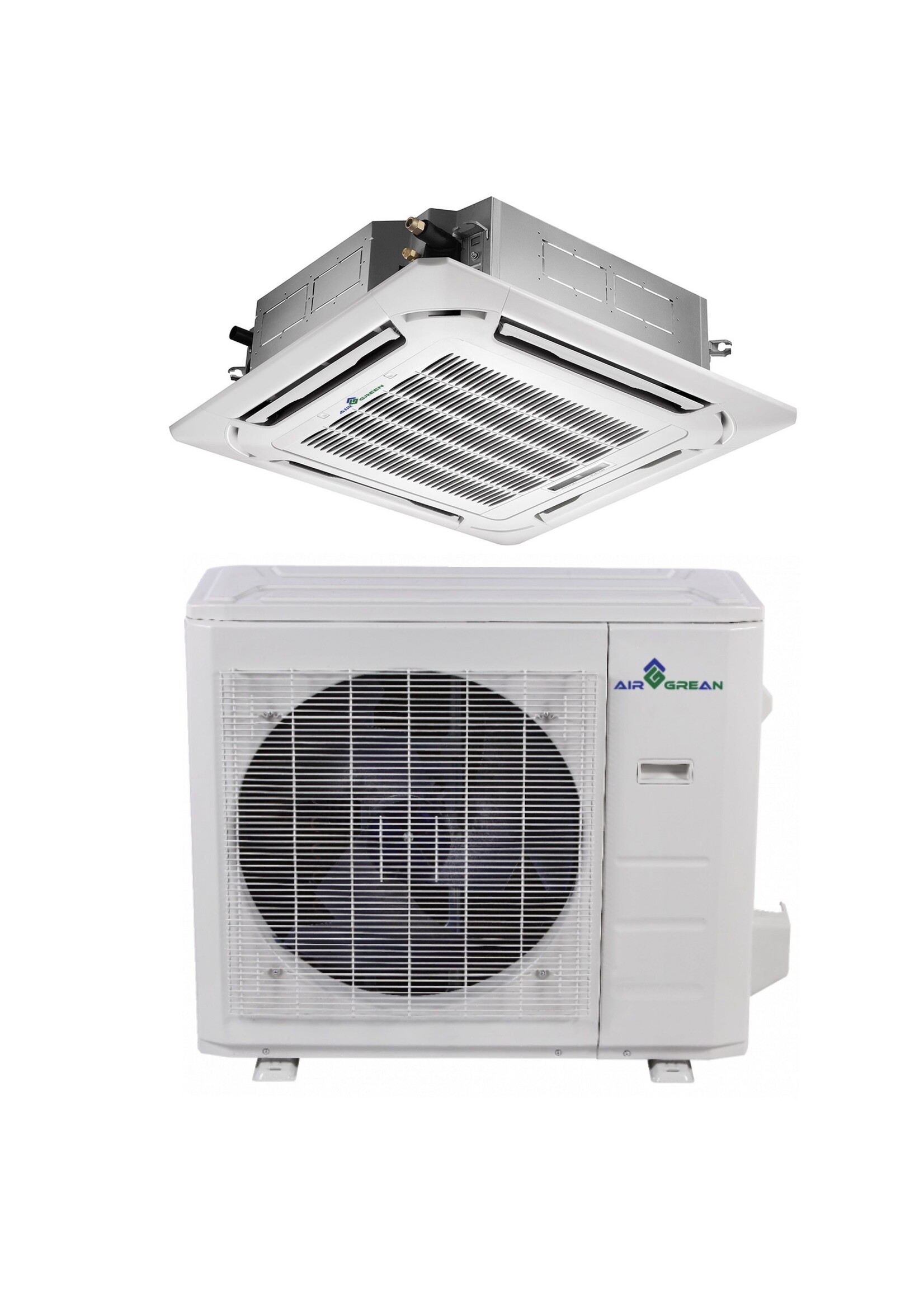

CEILING CASSETTE SPECS

Model			36,000 BTU
Power supply	Voltage type	/	208-230V,1Ph
	Supply frequency	/	60Hz
Max.Input consumption	Max.Input consumption	W	4800
Max.Current	Max.Current	A	23
Min. Circuit ampacity	Min. Circuit ampacity	A	35
Max.Fuse	Max.Fuse	A	50
Compressor	Capacity	W	9490
	Input	W	2600
	Rated current	A	5.1
	Rated current(Certification)	A	/
Outdoor Fan motor	Input	W	150.0
	RLA (Rated current)	A	1.39
	RLA (Certification)	A	/
	LRA (Locked rotor amp)	A	/
	Winding resistance	Ω	/
	Speed(High/Mi/Low)	r/min	950/750
Outdoor side air flow(Hi)	Outdoor side air flow(Hi)	m3/h	2529
		CFM(ft3/min)	1487.65
Dimension(W*D*H)	Body_Width(W)	inch	37.24
	Body_Depth(D)	inch	16.14
	Body_Height(H)	inch	31.89
Packing(W*D*H)	Packing_Width(W)	inch	42.91
	Packing_Depth(D)	inch	19.69
	Packing_Height(H)	inch	34.45
Net/Gross weight	Net weight	lb	148.59
	Gross weight	lb	160.94
Refrigerant	Refrigerant type	/	R410A
	Refrigerant charge	/	108
	Refrigerant charge unit	/	ozs
	Additional refrigerant per metre	g/m	30
