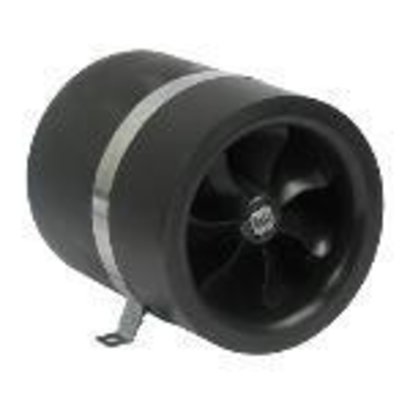

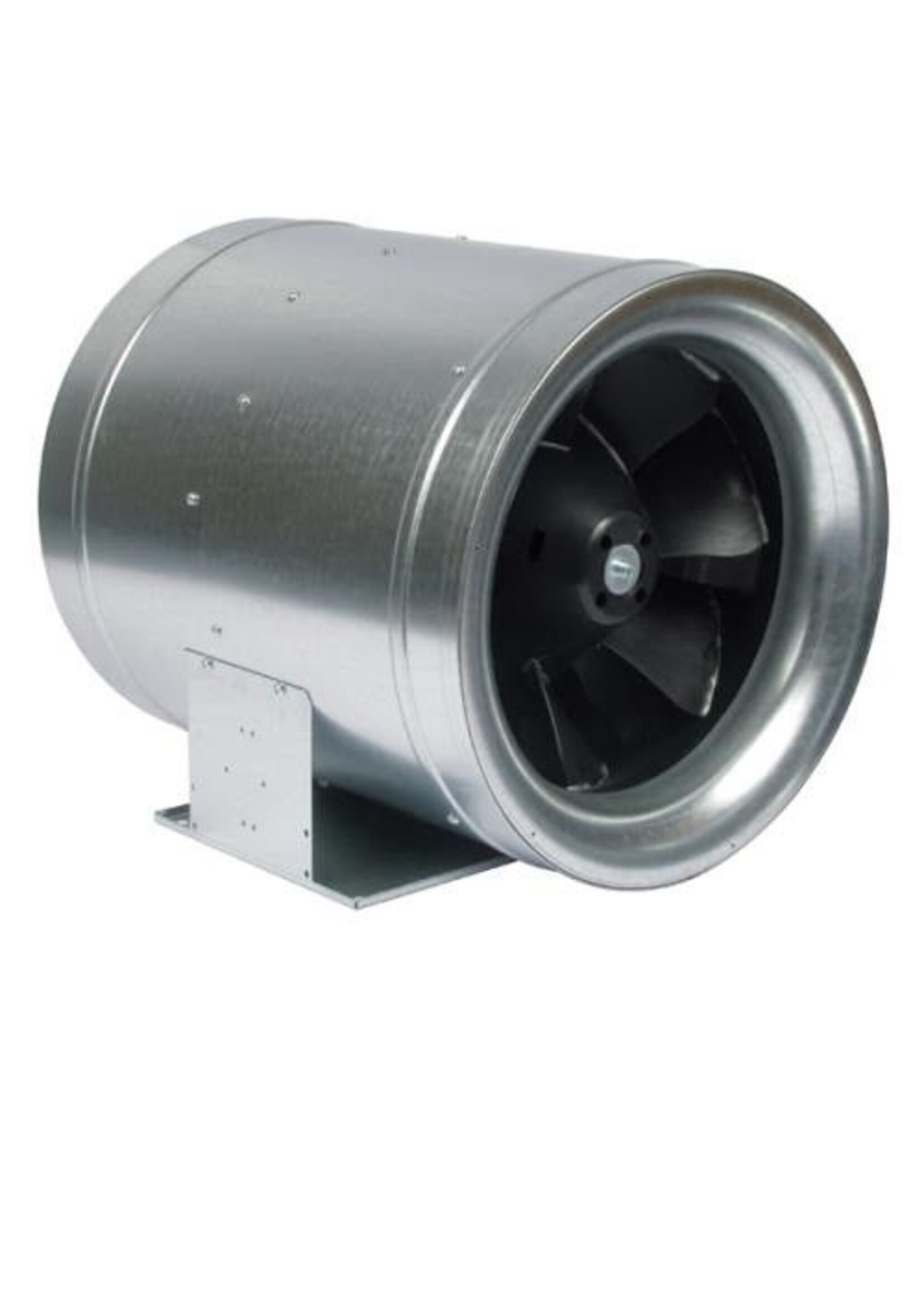

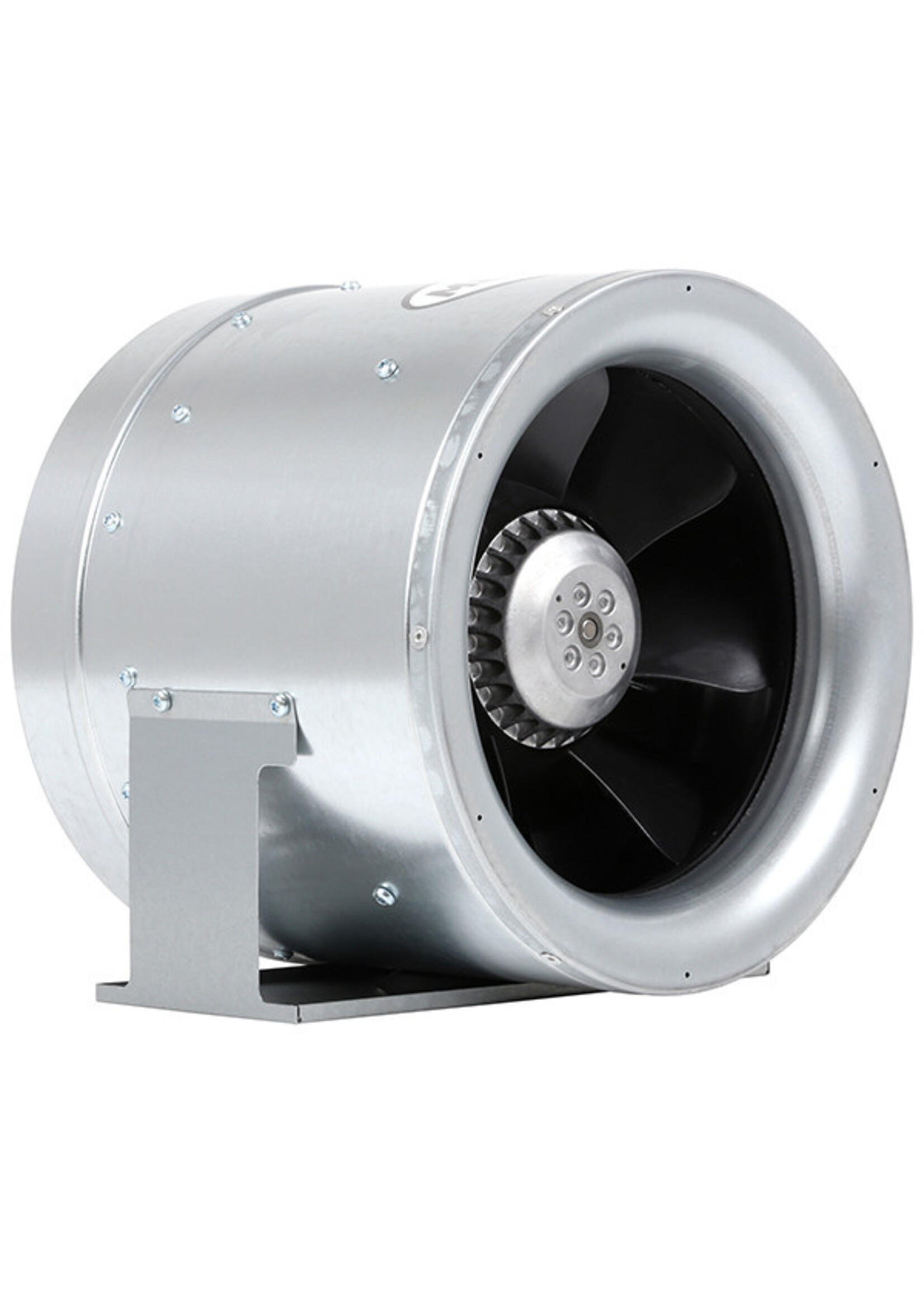

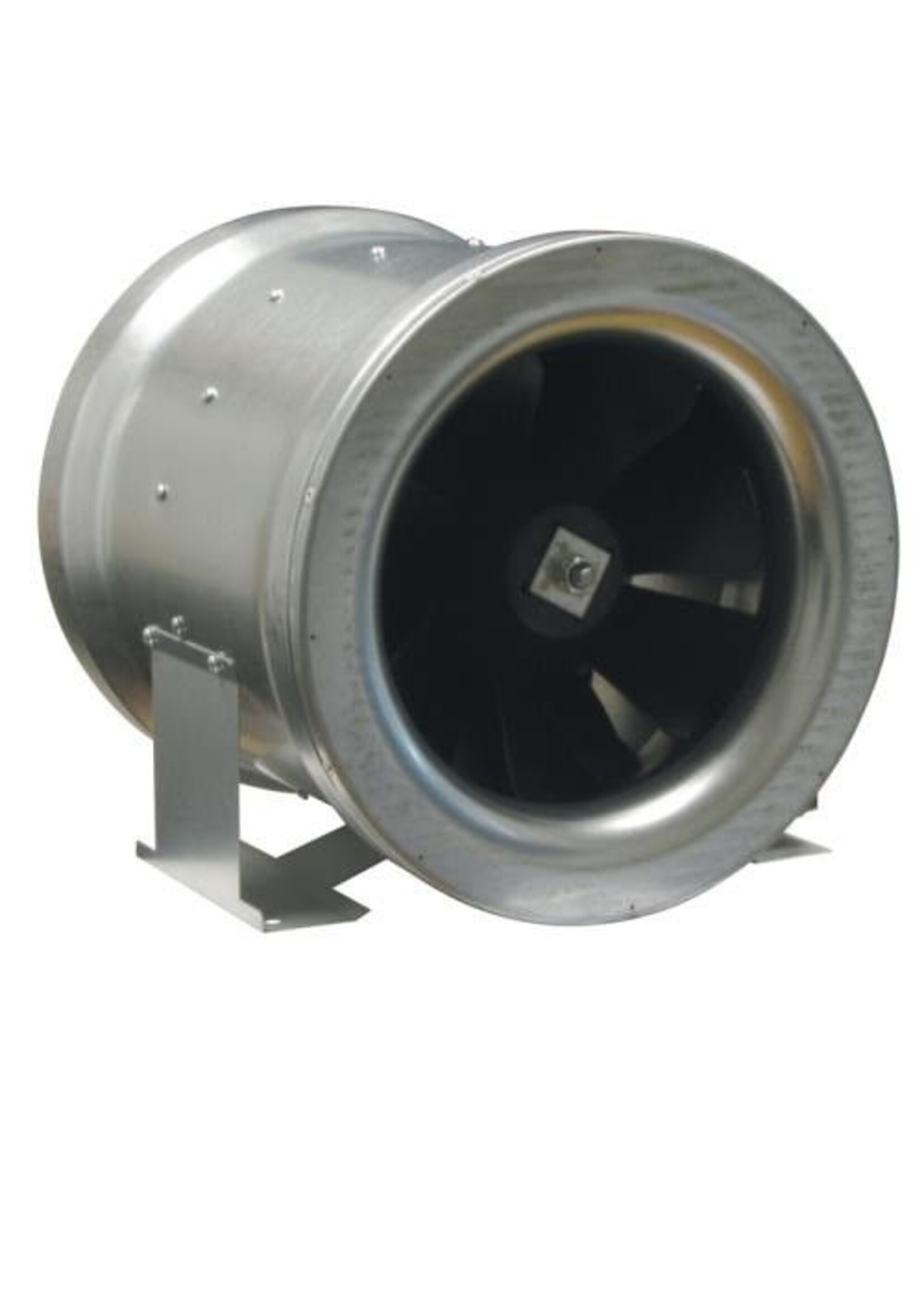

The Max-Fan® is the first fan that has been developed with a Computational Fluid Dynamics (CFD) program. CFDs are used for engineering aircraft propulsion engines. The perfectly designed 3D blades of the impeller and stator make this fan extremely powerful and energy efficient. Compared with other inline fans, the efficiency is 50%—100% higher. 6 in—14 in come pre-wired with an 8 ft 120 V power cord. 16 in does NOT come with a power cord (240 V). Can-Fan® bring its innovation to market and sets a new standard for performance. The Max-Fan® is a more powerful and efficient fan that takes less energy to run.

8 Inch Specs

• CFM: 667 at 0wg
• RPM: 3250
• Max Watts: 179
• Amps: 1.5 @ 120v AC 60 Hz
• Diameter: 8″
• Length: 8.875″
• Blade Design: Mixed Flow
• Housing: Plastic
• Inlet/Outlet: 8″

10 Inch Specs

• CFM: 1019 at 0wg
• RPM: 2990
• Max Watts: 228
• Amps: 1.9 @ 120v AC 60 Hz
• Sones: 11.5 at 0.10 wg
• Diameter: 10″
• Length: 8.5″
• Blade Design: Mixed Flow
• Housing: Galvanized
• Inlet/Outlet: 10″

12 Inch Specs

• CFM: 1708 at 0wg
• RPM: 3374
• Max Watts: 489
• Amps: 4.1 @ 120v AC 60 Hz
• Diameter: 12″
• Length: 12.125″
• Blade Design: Mixed Flow
• Housing: Galvanized
• Inlet/Outlet: 12″

14 Inch Specs

• CFM: 1700 at 0wg
• RPM: 1700
• Max Watts: 253
• Amps: 2.1 @ 120v AC 60 Hz
• Sones: 10 at 0.10wg
• Diameter: 14″
• Length: 15.75″
• Blade Design: Mixed Flow
• Housing: Galvanized
• Inlet/Outlet: 14″
