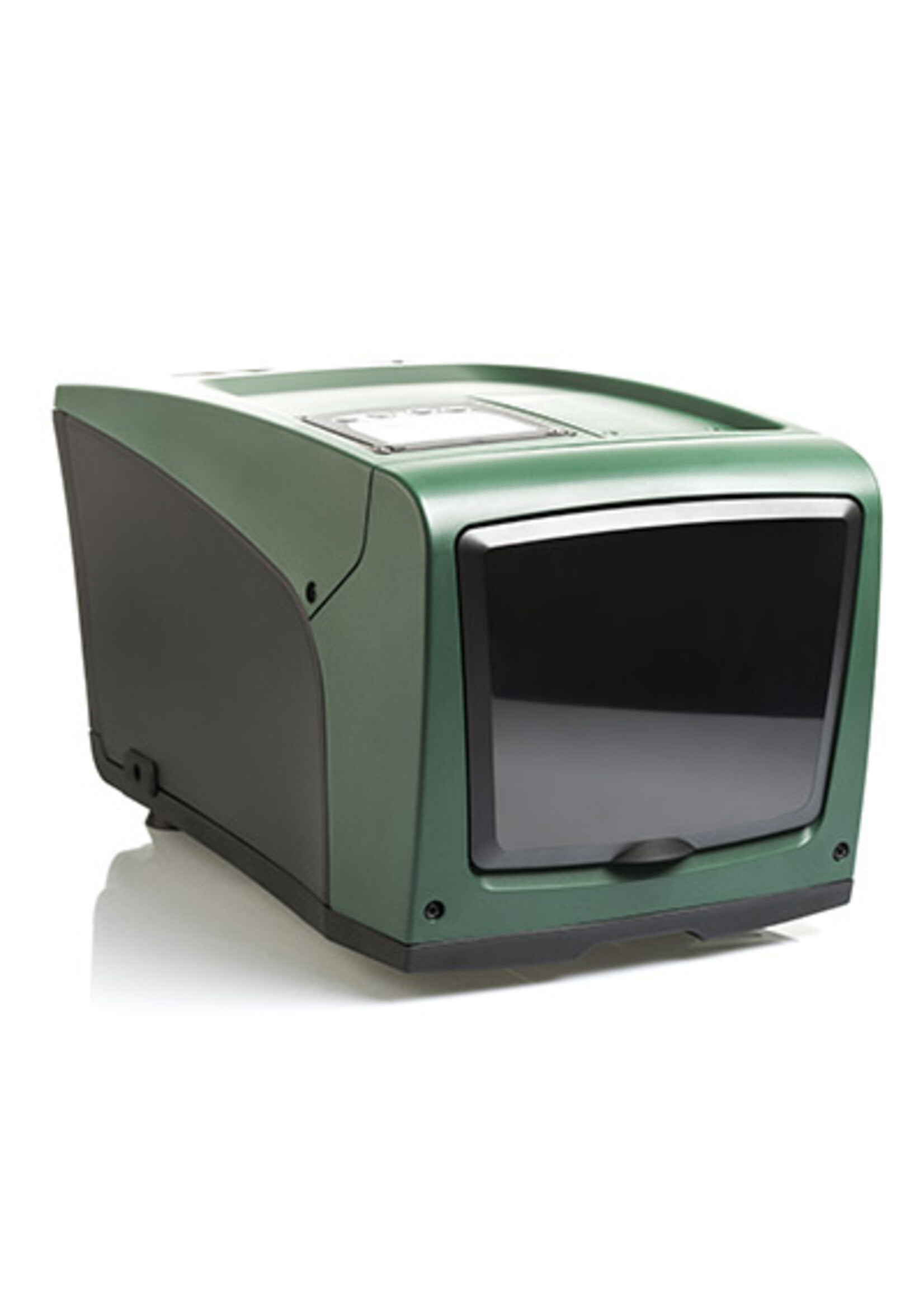

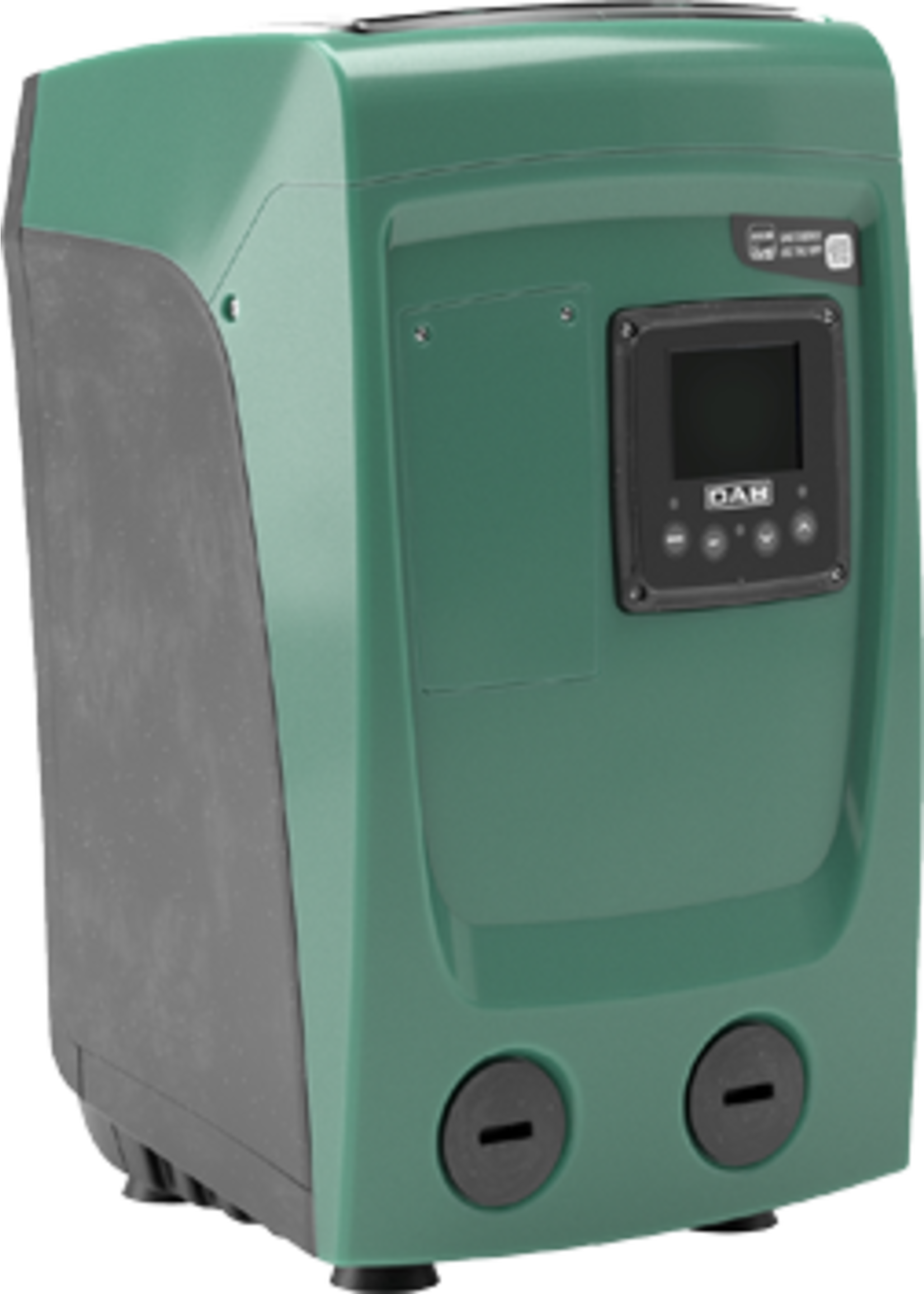

DAB E.SYBOX Mini 3 Electronic Water Pressure System

$1,029.00
Availability: Out Of Stock
Delivery time: Order Now and get in 2-3 Business Days

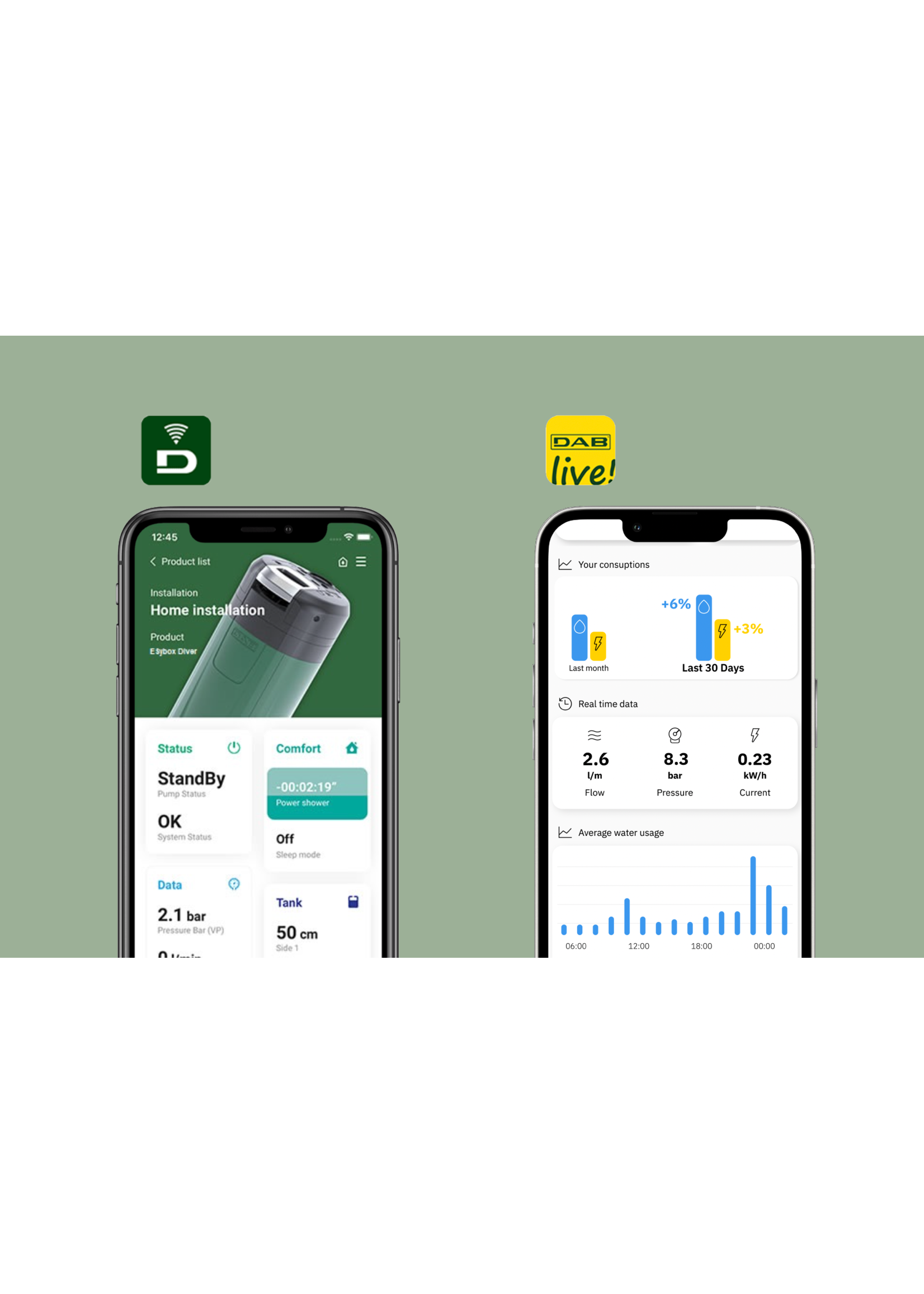

Compact - Versatile - Silent - WiFi Connect App - All-in-One System

Thanks to the technological know-how developed during more than 40 years, DAB Pumps is proud to introduce to the market the ESYBOXmini 3.

The ESYBOX MINI 3 is a compact automatic pressurization system designed by DAB for supplying water to a single residence.

It ensures a steady water pressure inside the house, and it can be adjusted to your desired pressure between 15 and 80 pounds per square inch (psi).

This system uses advanced VFD technology that helps save energy. You can use it with drinking water and all your household needs, it can even be used for gardening.

The best part is that you don't need any extra parts to install it. It includes a powerful pump, smart electronics, pressure and flow sensors, a clear LCD display, a built-in expansion tank, and a check valve. You can install it vertically or horizontally and its compact size makes it suitable for tight spaces where air circulation may be limited.

In summary, the ESYBOX MINI 3 offers a convenient and efficient solution for maintaining water pressure in a single residence. It ensures comfort, energy savings, while still being easy to install.



TECHNICAL DATA

Operating range:

capacity up to 22 gpm (80L/min); head up to 183 ft (56 m) - (80 psi)

Liquid quality requirements:

clean, free from solid or abrasive contaminants, non-viscous, non-aggressive, uncrystallized and chemically neutral.


Liquid temperature range:

from 32°F to +95°F (0°C to +35°C) for domestic use
for other use: from 32°F to +104°F (0°C to +40°C)


Maximum suction depth: 26 ft (8 m)
Maximum ambient temperature: +122°F (+50°C)
Maximum pressure: 108 psi (7.5 Bar)
Maximum settable pressure: 79 psi (5.5 Bar)
Motor protection rating: IPX4
Insulation class: F
Installation: Horizontal or vertical fixed position

Approvals:

CSA certification to CSA Standard C22.2 No 108- 14 Liquid Pumps

UL Standard 778- 5th Edition- Motor operated water pumps

NSF/ANSI 61 - 2014a - Drinking Water System Components – Health Effects

NSF/ANSI 372 - 2011 - Drinking Water System Components – Lead Content



Features

It consists of a high frequency self-priming double impeller pump, management inverter electronics, pressure and flow sensors, adjustable high resolution LCD display with 1/4 gallon built-in expansion vessel, and cartridge check valve.

The double suction and delivery ports allow both vertical and horizontal installation.

Thanks to its compact sizes, installation is also possible in difficult places without high air exchange.

The ESYWALL wall bracket allows wall installation, saving even more room.

ESYBOX MINI is a self-priming pump with a capability of 26 ft in less than 5 minutes.

The water-cooled motor, the anti-vibration feet and the electronics, make this product totally comfortable and compact.

Fitted with all the safety protections, as well as the protections for the safeguard of the pump. Particularly, the dry run and the antifreeze protections.

All the parameters and the operating status are displayed & set on the high-resolution LCD display.


Advantages

Thanks to the technological knowledge gained during the past 40 years, DAB PUMPS is proud to introduce the ESYBOX mini 3, the most compact and advanced booster pump system in the world.

Revolutionary and complete, ESYBOX mini 3 provides a new installation experience, whisper quiet running and maximum performance.

ESYBOX mini 3 is the ideal solution to solve any water pressurization issues in residential environments.

ESYBOX mini 3 takes advantage of the most advanced DAB technologies, to ensure a consistent pressure based on actual demands, and therefore an optimization of energy consumption.

Thanks to its versatility, ESYBOX mini 3 can be installed anywhere, even under the kitchen sink.


Benefits

GUARANTEES CONSISTENT WATERPRESSURE

ULTRA LOW NOISE

NO VIBRATIONS

EASY TO ADJUST

EQUIPPED WITH A LARGE DISPLAY

EXTREMELY COMPACT SIZES

QUICK TO INSTALL

INSTALLATION OPTIONS:

HORIZONTAL, VERTICAL

REDUCED ENERGY CONSUMPTION EASY MAINTENANCE

TECHNICAL DATA SHEET
