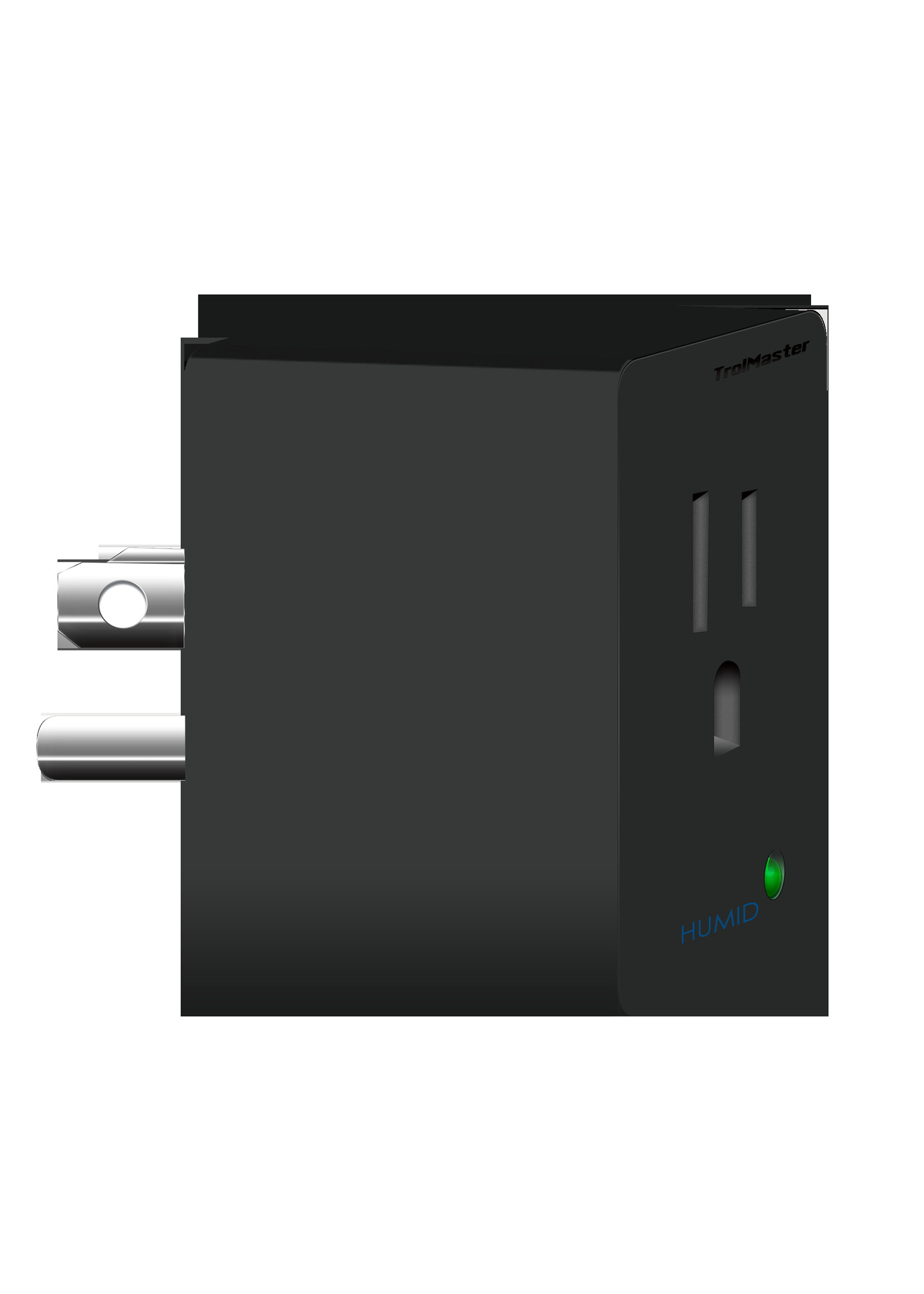

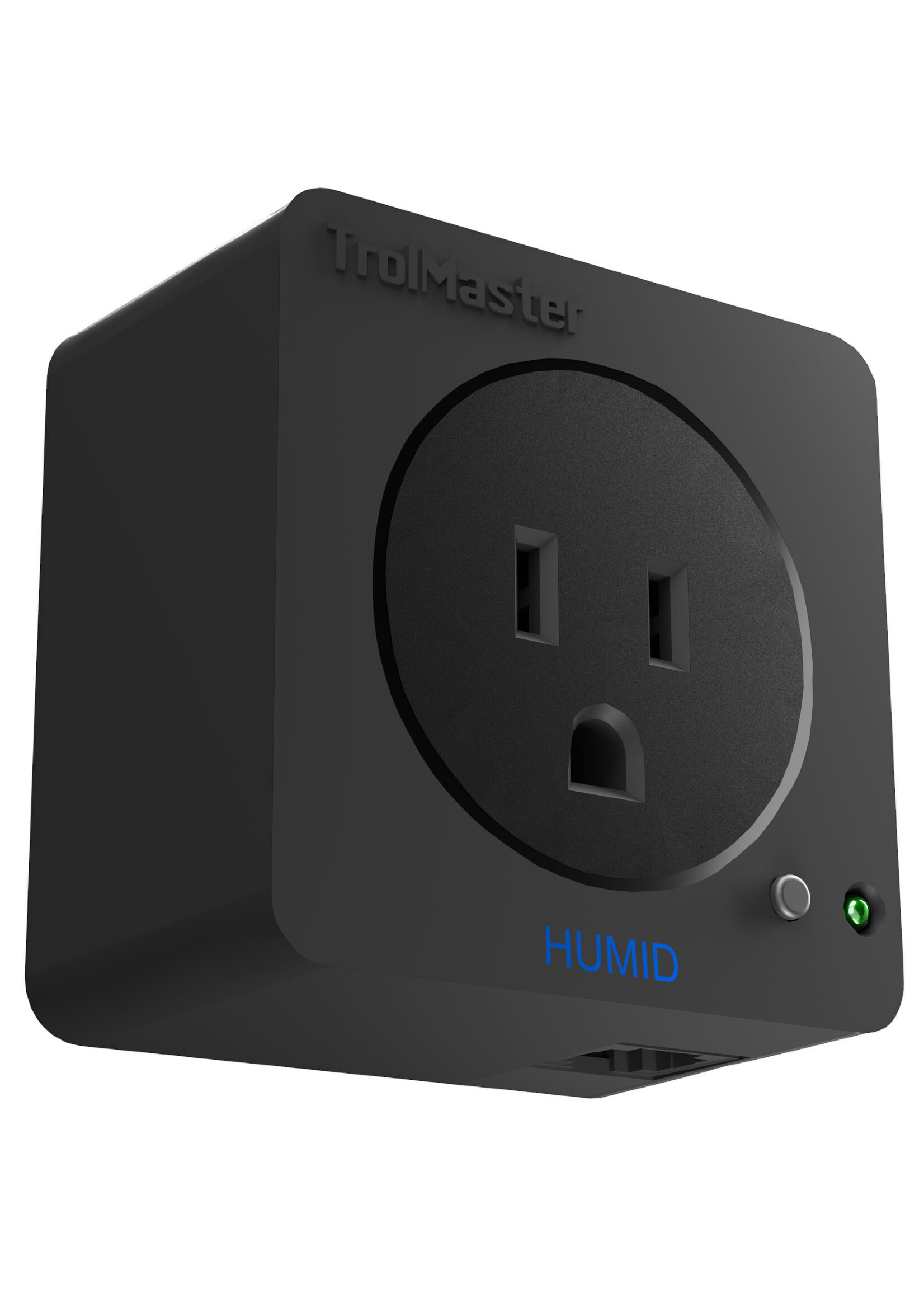

The TrolMaster DSH-1 Humidity control/device modules allow the user to easily connect and control standard humidifying or dehumidifying devices to the Hydro-x. This module allows control of any humidifying or dehumidifying device under the world voltage standard (100-240 VAC, 50/60 Hz), up to 10-amps. *Use with dehumidifiers less than 7 amps to avoid current overload.
LED status:
* Blinking green FAST: If the LED is blinking quickly, that means the module has not been addressed to the controller OR that module does not have a good connection to the controller. *Pressing the small button on the module will address/link the module when first installed.
* Blinking green SLOW: If you see a slowly blinking green LED, that means the module is addressed and connected to the controller, and the module is currently turned OFF.
* SOLID green: If you see the LED is on solid (no blinking) that means the modules are addressed, connected and currently turned ON.
* Blinking red: If you see the LED change to blinking red, that means the module has been overloaded. To reset the overload unplug the module from the power.
* By pressing and holding the button on the DSH-1, users can manually override the module and turn it ON / OFF.
All DS type modules provide global plug type, please check the following chart to check if it is compatible with your country.
TrolMaster DS Modules Plug List

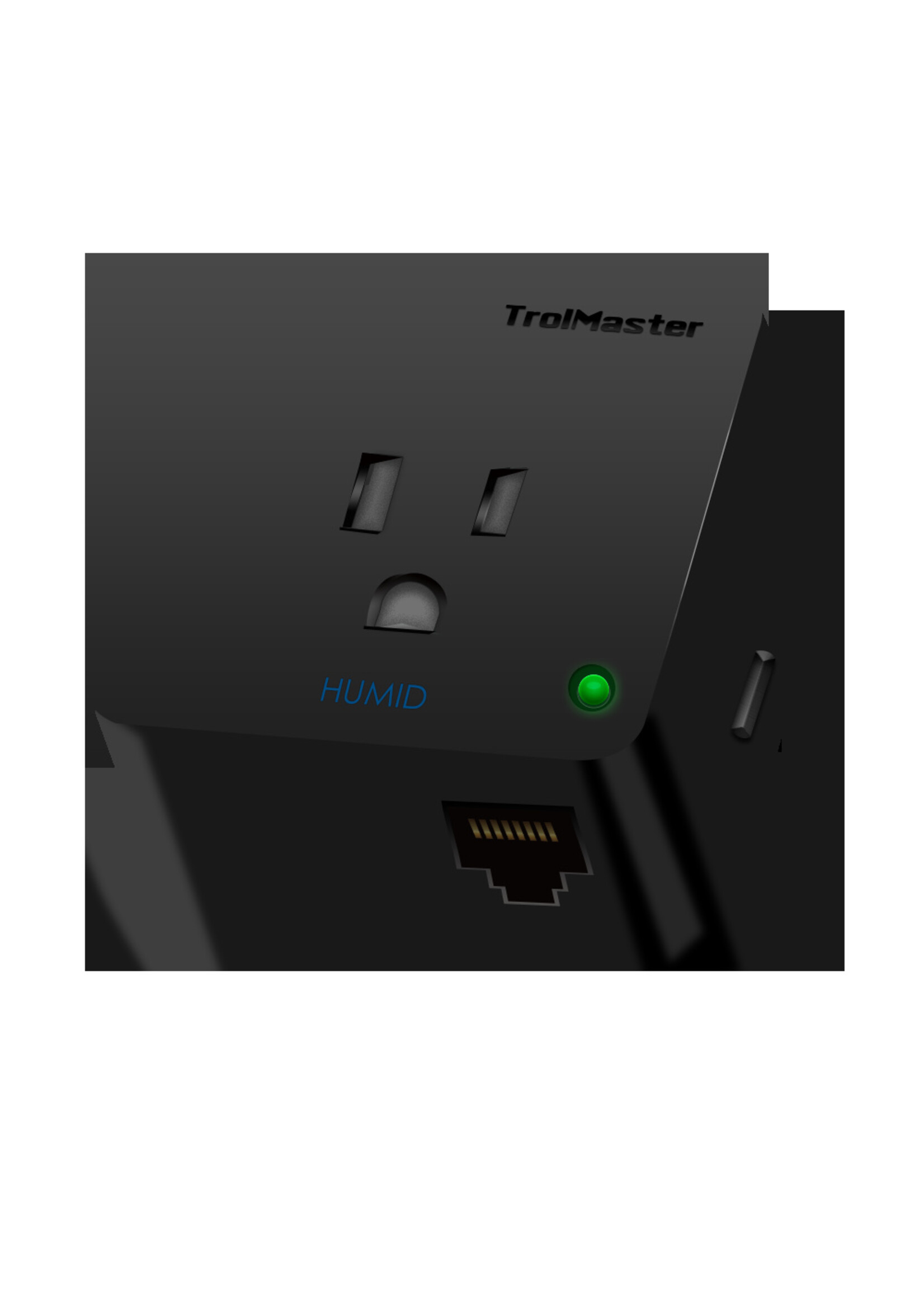

LED Power Indicator
RJ12 Cable Socket
Addressing
Plug & Play
1 x Device Station
1 x 16ft RJ12 Cable
1 x 4ft RJ12 Cable
1 x RJ12 T-Splitter
Input Voltage: 100~240 VAC, 50/60Hz
Output Current: 10A
Output Voltage: 100~240 VAC, 50/60Hz
Working Environments: Temperature 32-122°F, Humidity=90%
Package Dimensions: 3.35” /85mm(L) x 3.15” /80mm(W) x 3.54” /90mm(H)
G.W. per pack: 12.0oz /340g
