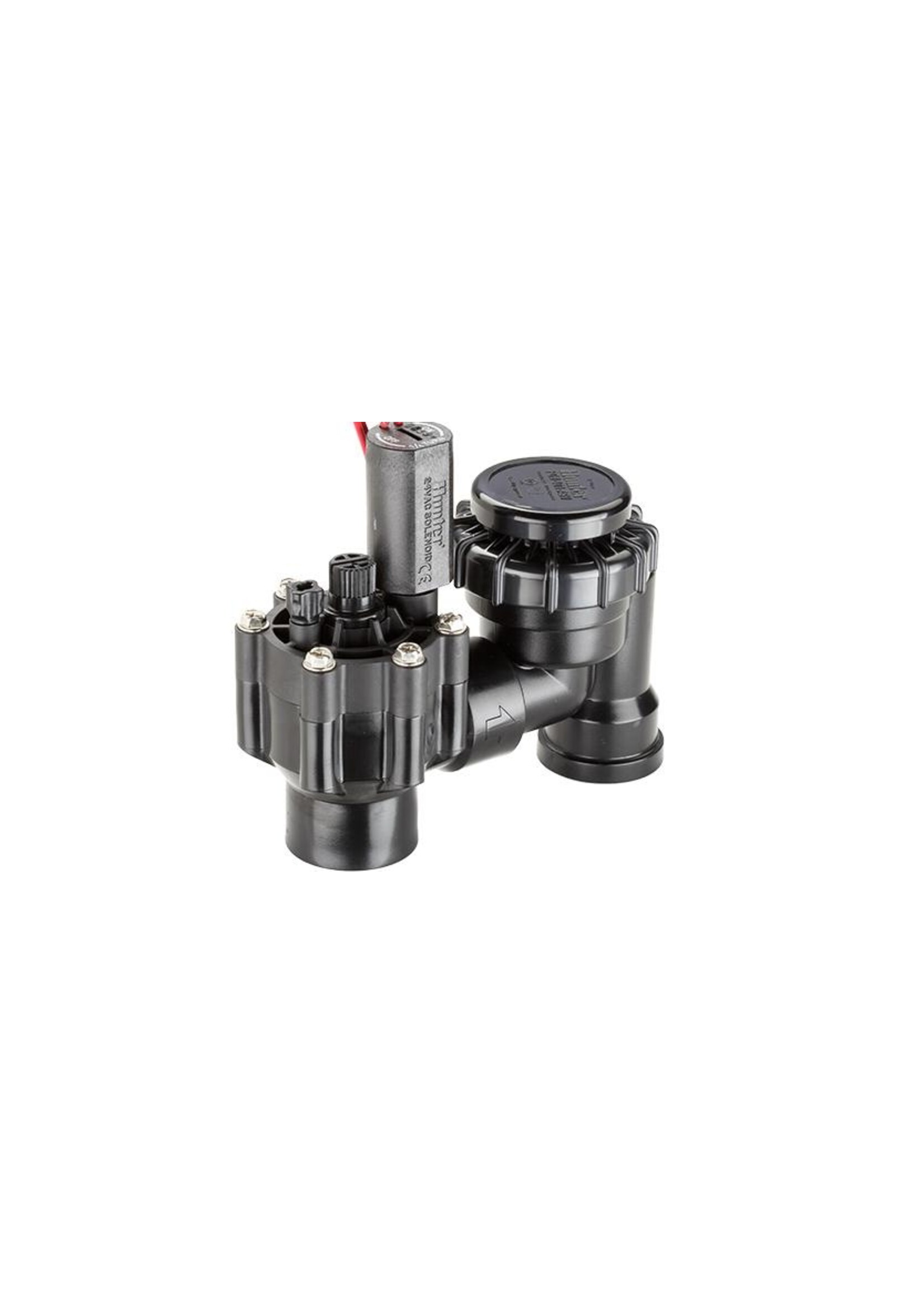

The Hunter PGV-ASV Anti-Siphon Valve is a backflow
prevention device and irrigation control valve for sprinkler
irrigation systems. Gain simple and trouble-free operation
without the need for a separate backflow preventer.
Ensure installation is in a region that allows for irrigation
systems without backflow preventers. Always consult local
construction codes.
KEY BENEFITS
External/internal manual bleed allows for quick and
easy activation at the valve
Double-beaded diaphragm seal design ensures leakfree performance
Captive bonnet screws eliminate the possibility of
lost parts during disassembly
Triple-tool bonnet screws are compatible with
standard or Phillips screwdrivers as well as a nut
driver
Removable anti-siphon cap for simple servicing
Encapsulated solenoid with captive plunger used on
every Hunter valve provides hassle-free service
Flow control maximizes efficiency and prolongs the life of the system
User-Installed Options
Accu Sync® pressure regulation at the valve
DC-latching solenoid for battery-powered controllers (P/N 458200)
Factory-Installed Options
DC: DC-latching solenoid for battery-powered controllers
Operating Specifications
Flow: 0.2 to 40 GPM
Recommended pressure range: 20 to 150 PSI
Temperature rating: 150°F
Warranty period: 2 years
