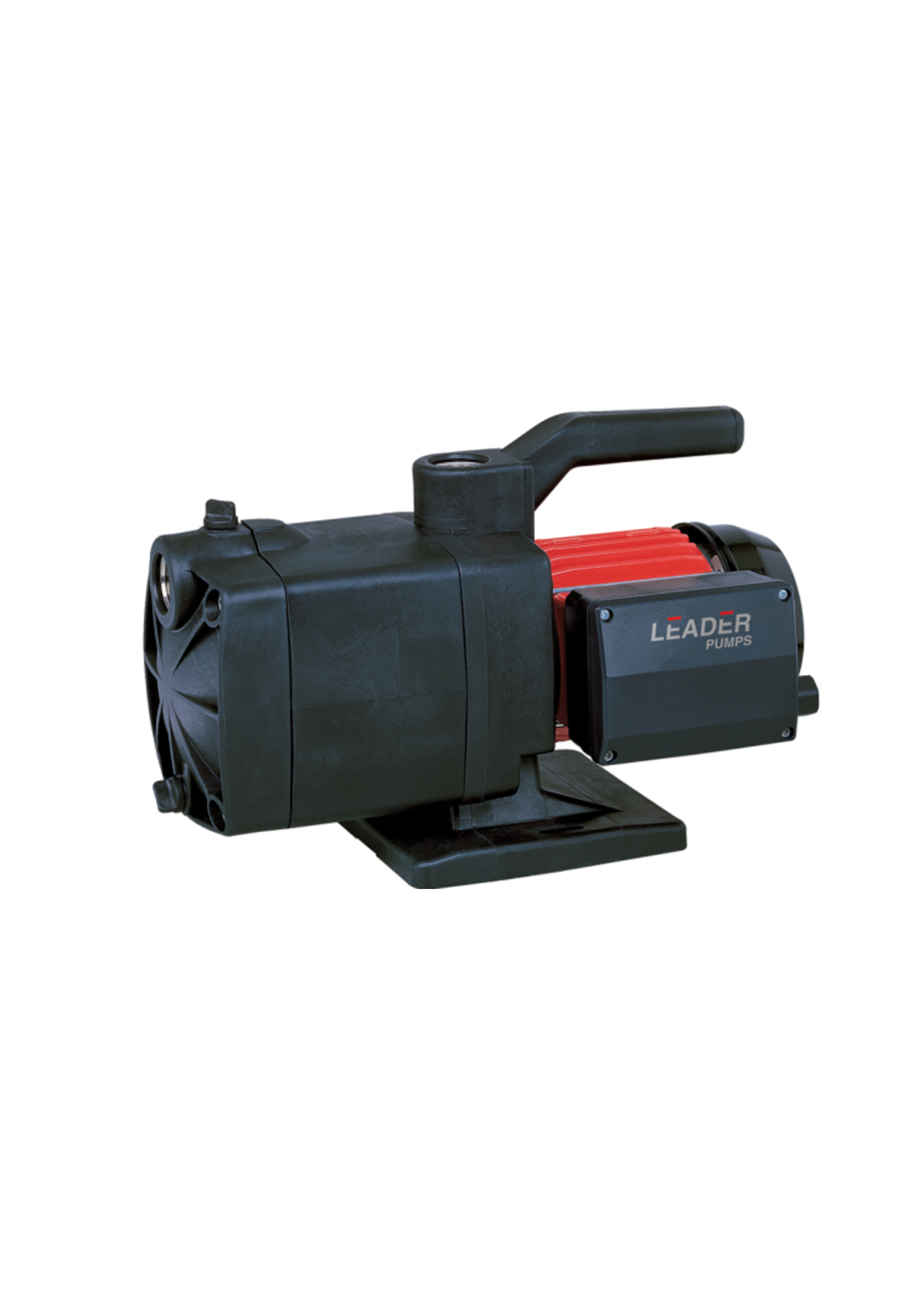

ECOPLUS models are for Pump Only. ECOTRONIC models are ECOPLUS PUMPS with the HYDROTRONIC PRESSURE SWITCH INCLUDED.

Self-priming multi-stage pumps ideal for supplying water for domestic and irrigation applications. Low noise and high pressure performance. Available with 3, 4, and 5 impellers.

TECHNICAL DATA

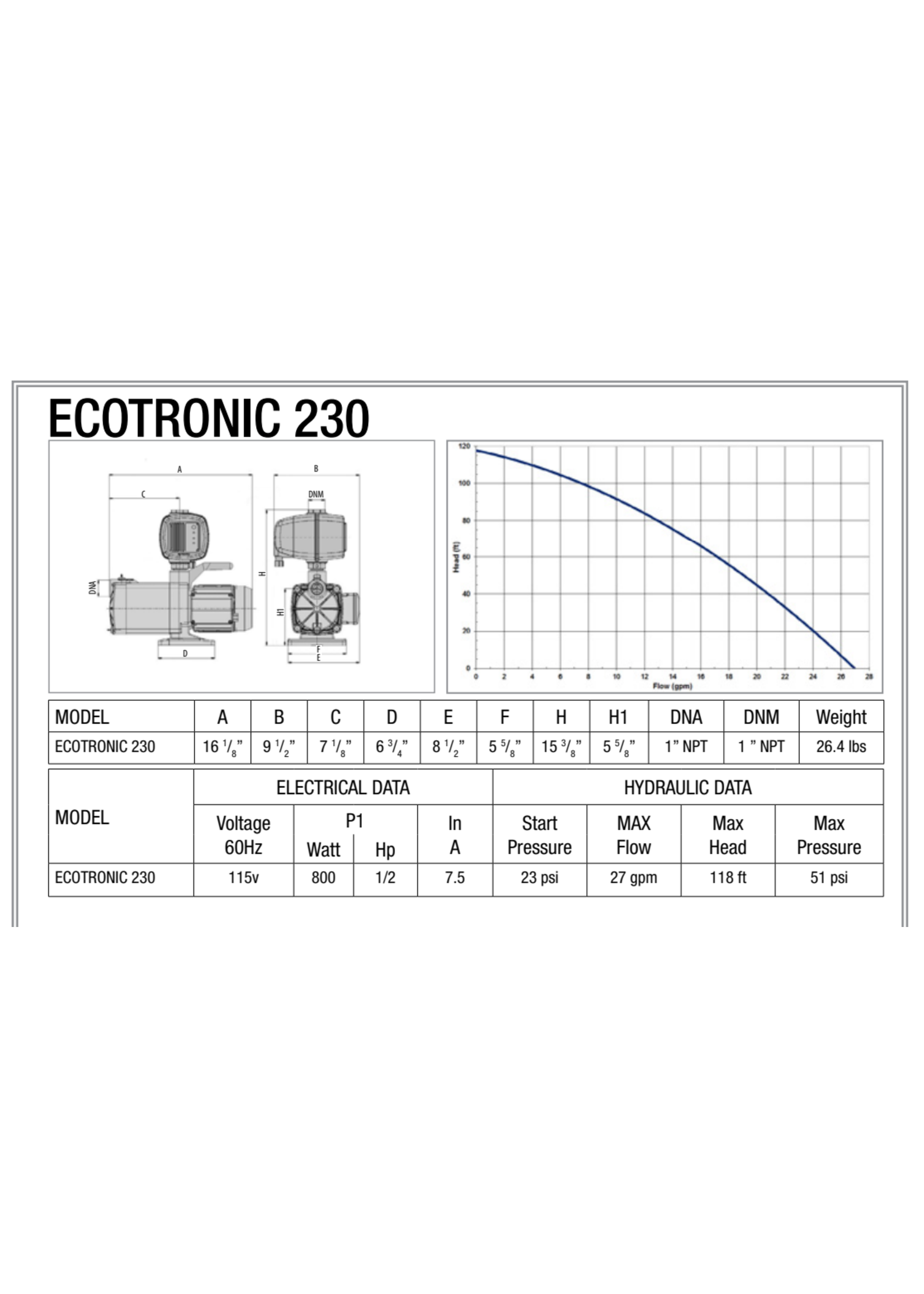

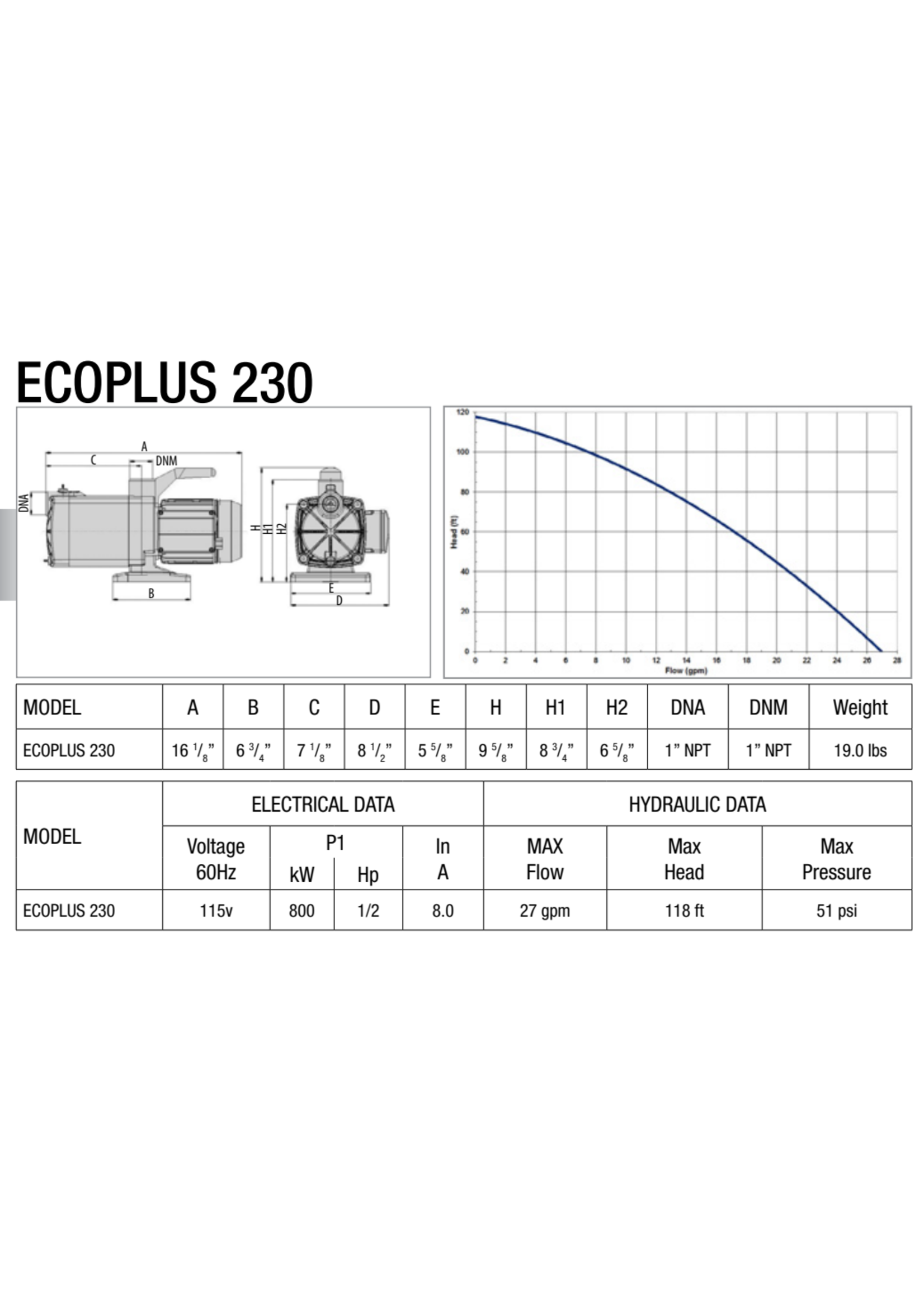

230 - 115v- 800w -1/2HP -27 gpm- 118 ft max head- 51 max psi

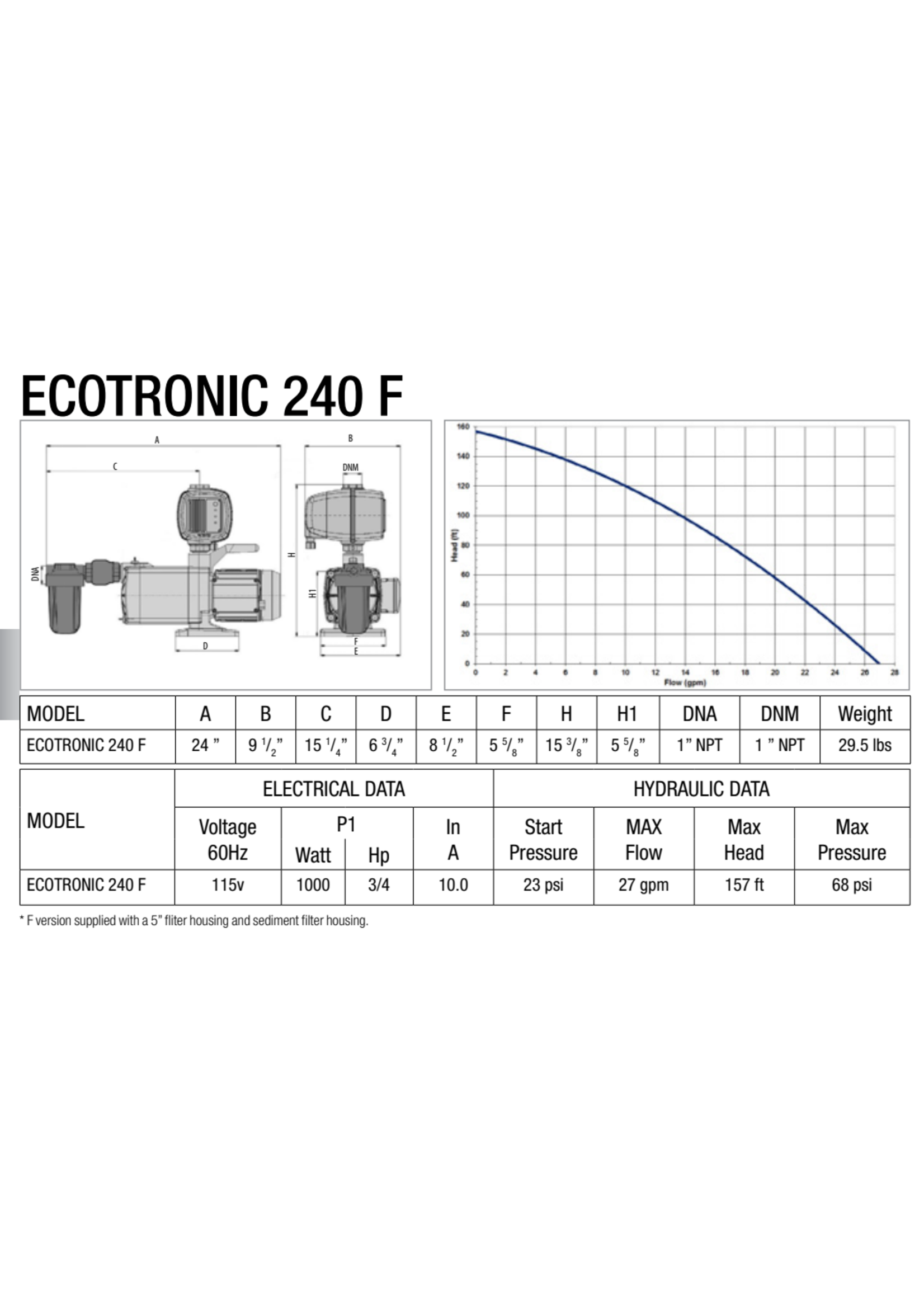

240F - 115v- 1000w -3/4HP  -27 gpm- 157 ft max head -68 max psi

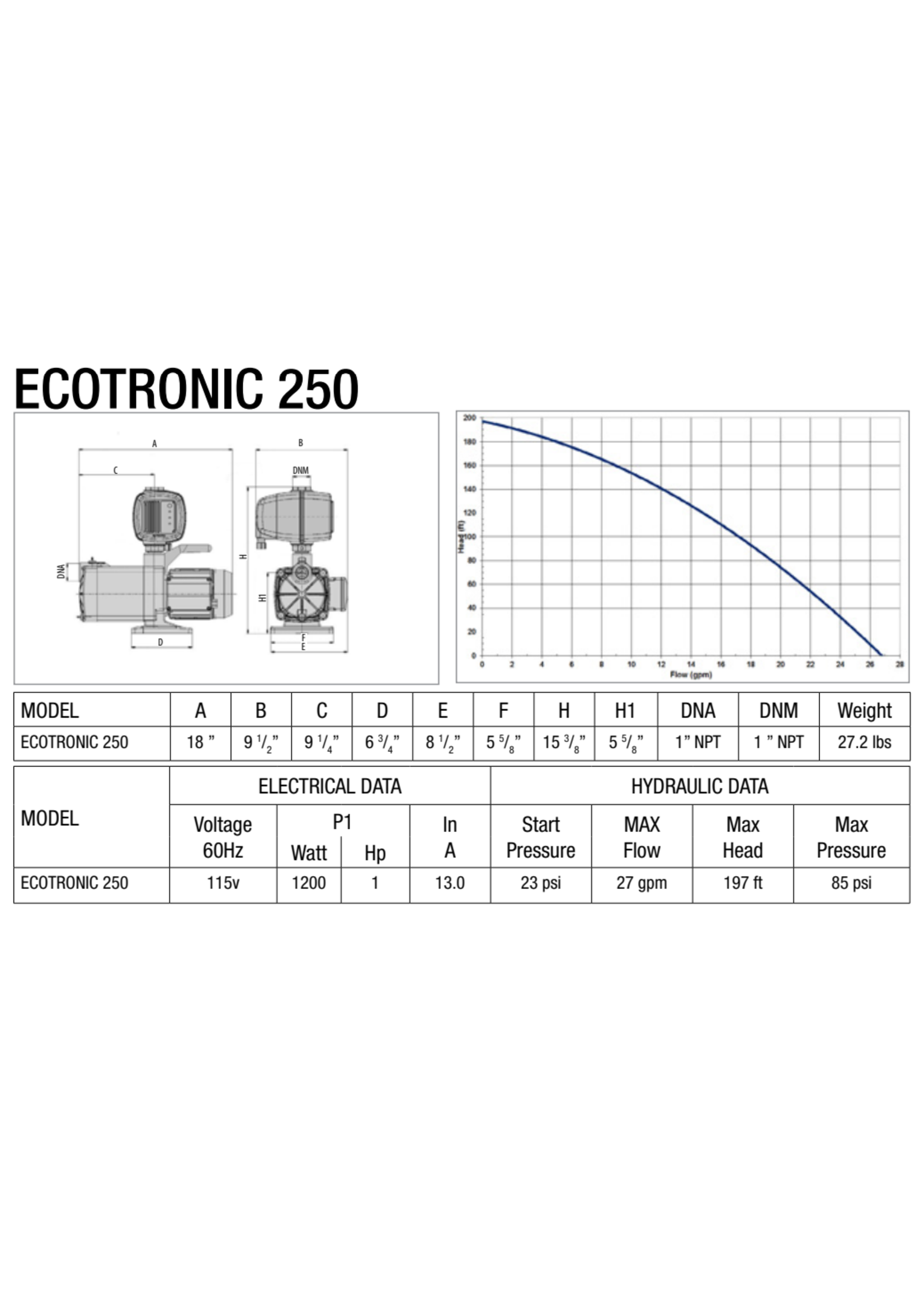

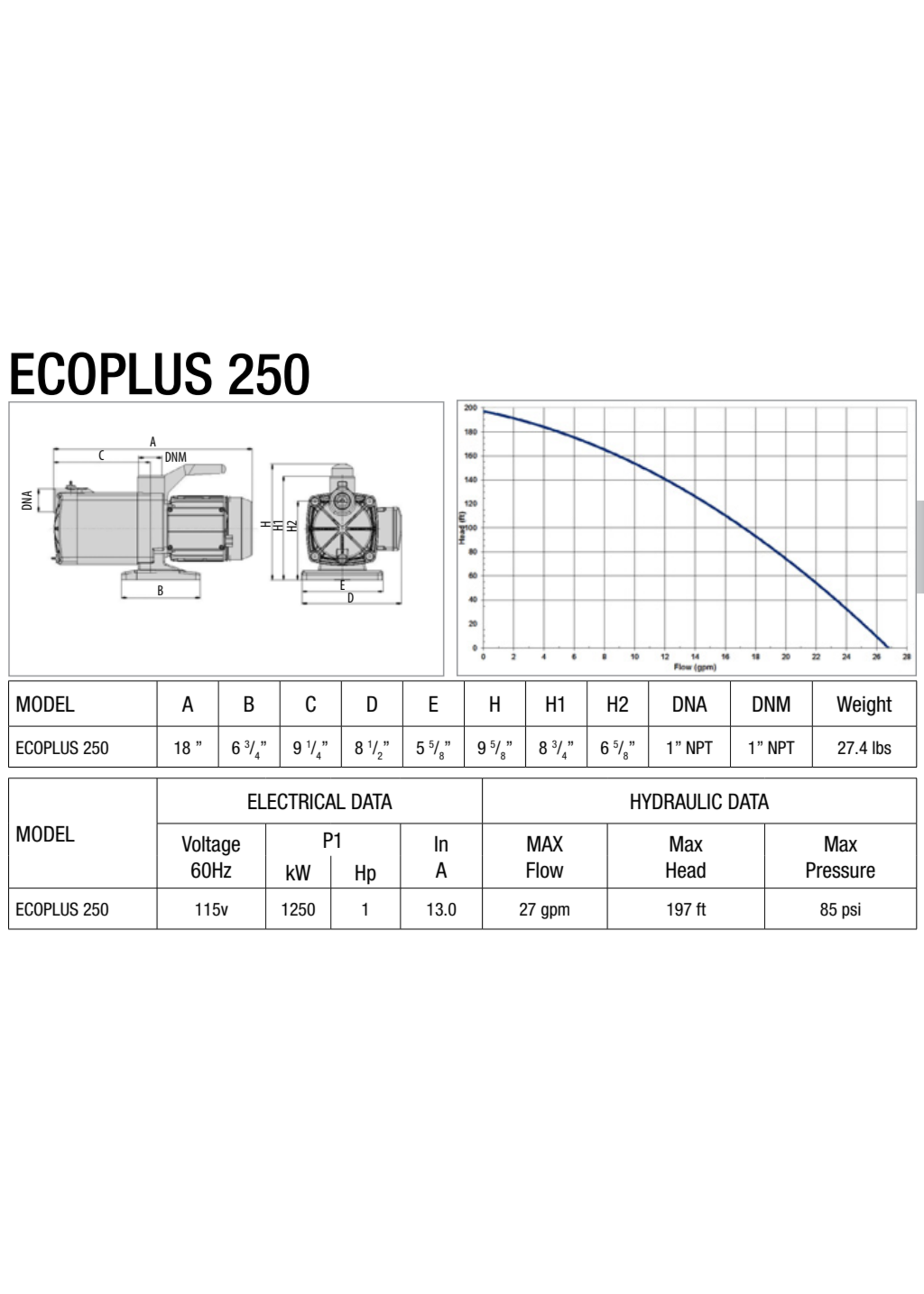

250 - 115v 1200w 1HP -27 gpm -197 ft max head- 85 max psi

• Operating Range: From 1 to 27gpm with a head up to 197ft ( 85 psi )
• Liquid quality requirements: clean, free from solids or abrasive substances, non-viscous, non-aggressive, non-crystallized, chemically neutral, close to the characteristics of water
• Liquid temperature Range: From 32°F to 95°F for domestic use or 32°F to 120°F for other uses.
• Maximum Suction depth: 26 ft
• Maximum ambient temp. 104°F
• Maximum operating pressure: 118 psi
• Installation: fixed or portable in a horizontal position
• Special version: on request other voltages and/or frequencies
• Power Supply:  115v 60Hz

Features

• Multistage centrifugal electric pump.
• Pump body in technopolymer.
• Built-in capacitor with thermal overload protection.
• Anti-corrosive and rust-proof materials.
• Double sealing system between motor and hydraulic part.
• Supplied with power cable with plug, switch, and self-sealing fitting.

Advantages

• The special design allows these pumps to operate with low noise.
• Pressures up to 86 PSI can be reached.

Benefits

• Low noise.
• Reliable.
• High pressure.
• Good resistance to frost.

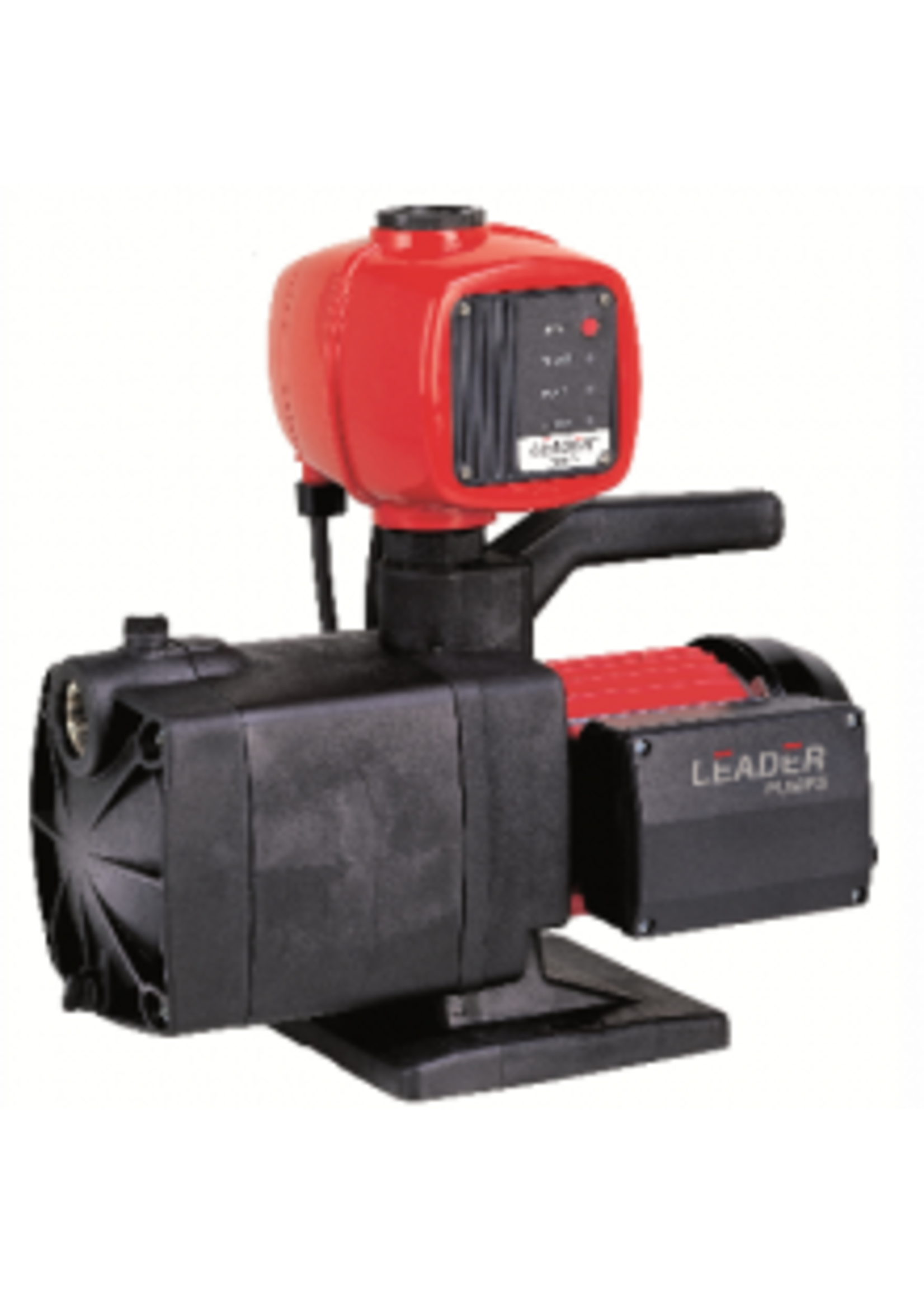

In addition ECOTRONIC MODELS ALSO FEATURE...

• Equipped with an electronic safety device that protects the pump from dry-running.
• Built-in non return valve.
• Designed to automatically start and stop the pump when taps are opened or closed.
• Automatic and manual reset.
• Constant pressure and flow rate.
• Supplied with power cable with plug.
