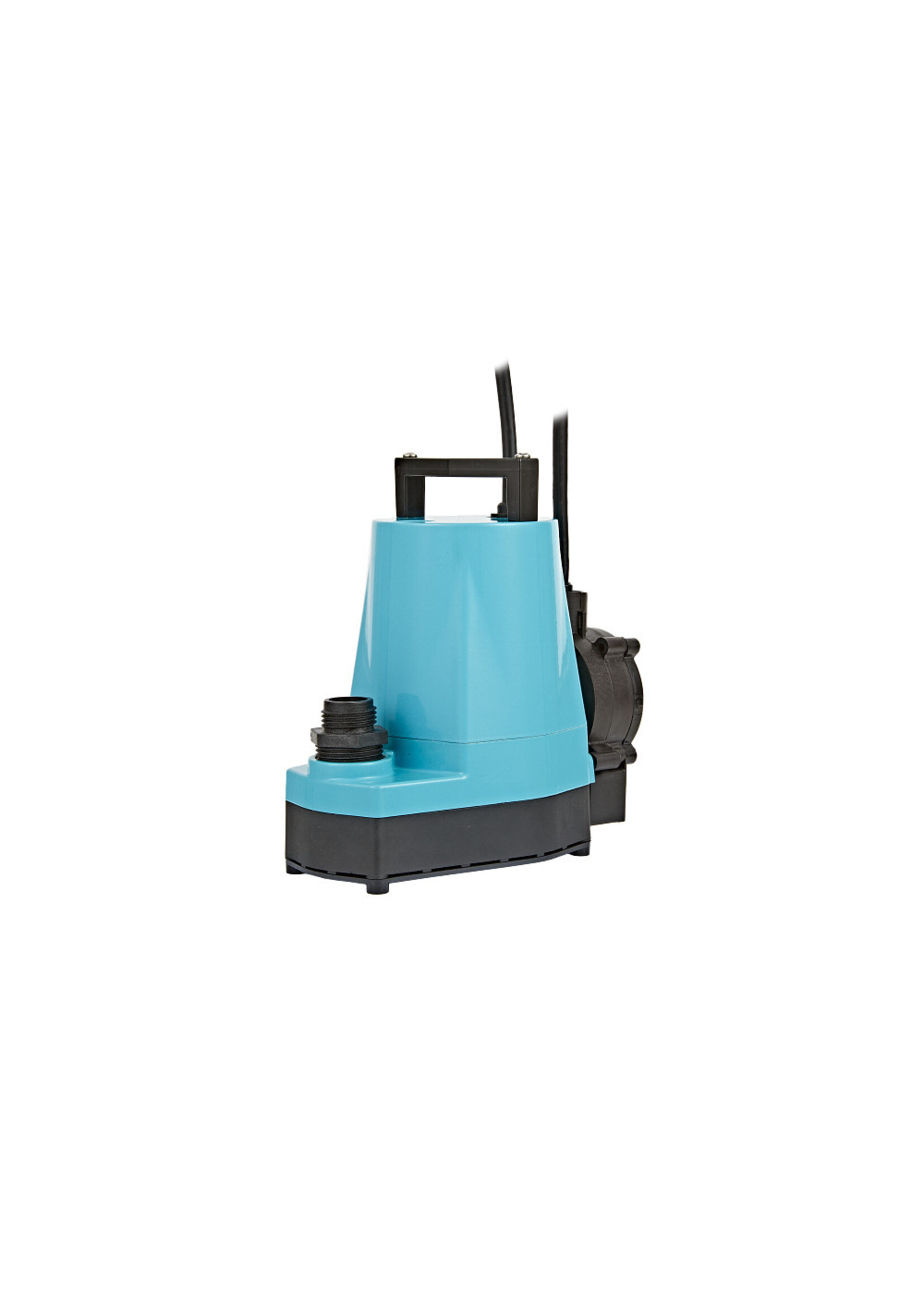

Close1/6 hp utility pump, 115 V, 10' cord, automatic operation, standard level diaphragm switch
Ratings |
|
| HP 60Hz | 1/6 hp |
| Frequency | 60 Hz |
| Phase | Single-Phase |
| Amps - Full Load | 2 A |
| Amps - Starting | 3.5 A |
| Full Load Watts | 380 W |
| Volts | 115 VAC |
| Cord Length | 10 ft |
| Motor Type | Submersible |
| Continuous Duty | Yes |
| Thermal Overload Protection | Yes |
| Protection [IP] | IP68 |
Operation |
|
| Maximum Flow Rate - 60Hz | 25 gpm / 1500 gph |
| Minimum Flow Rate - 60Hz | 4.17 gpm / 250 gph |
| Rated Flow Rate - 60Hz | 20 gpm / 1200 gph |
| Shut-Off | 26.3 ft |
| Minimum Head - 60Hz | 1.31 ft |
| Shut Off Height - 60Hz | 26.3 ft |
| Stages | 1 |
| Max Solid Handling Size | 0.13 " |
| Switch Type | Automatic |
| Motor Cooling | Water |
Liquid |
|
| Max Fluid Temperature | 120 °F |
Materials of Construction |
|
| Pump Base Material | Plastic |
| Pump Body Material | Aluminum |
| Pump Volute Material | Nylon |
| Impeller Type | Semi-open |
| Impeller Material | Nylon |
| Motor Shaft End - Material | Stainless Steel |
| Intake Screen Material | Nylon |
| Top Bearing Type | Sleeve |
| Bottom Bearing Type | Sleeve Bearing |
| Seal Material | Viton Retainer |
| Seal Type | Retainer |
Installation |
|
| Discharge Type | Threaded - FNPT |
| Discharge | 1 " |
| Product Length | 6.1 " |
| Product Height | 7.78 " |
| Pump Length | 7.8 " |
| Product Weight | 7.4 lb |
| Product Weight w/ Pack | 8.3 lb |
| Carton Length | 9.45 " |
| Carton Width | 6.3 " |
| Carton Height | 9.45 " |
| Off Level - Range | 1" - 4" |
| On Level - Range | 6" - 9" |
Other |
|
| Accessories Included | 3/4" GHT garden hose adapter |
| Minimum Order Quantity | 1 |
| Electrical Agency Approvals | UL |
| Standard Warranty | 12 Month Purchase / 12 Month Manufacturing |
