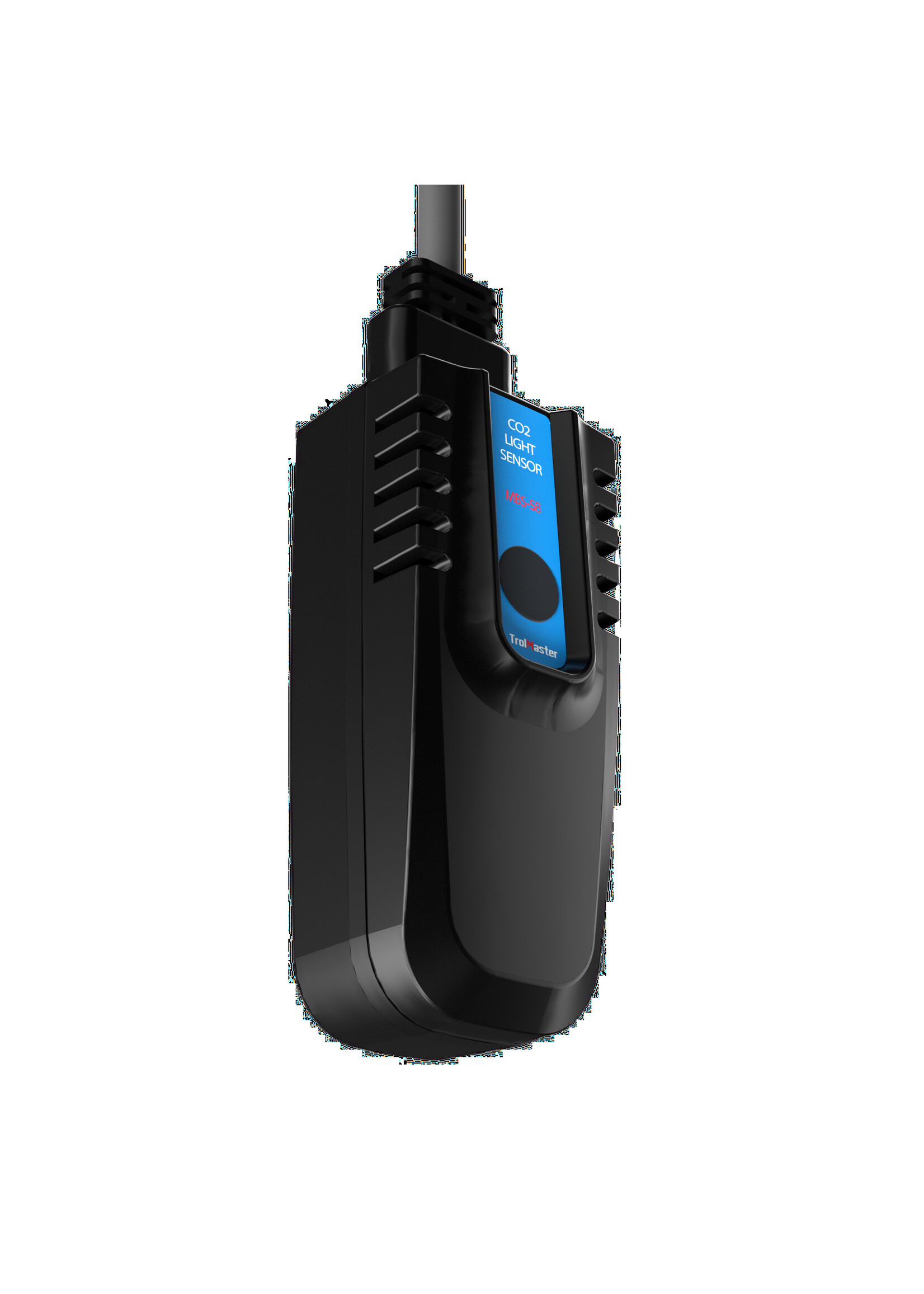

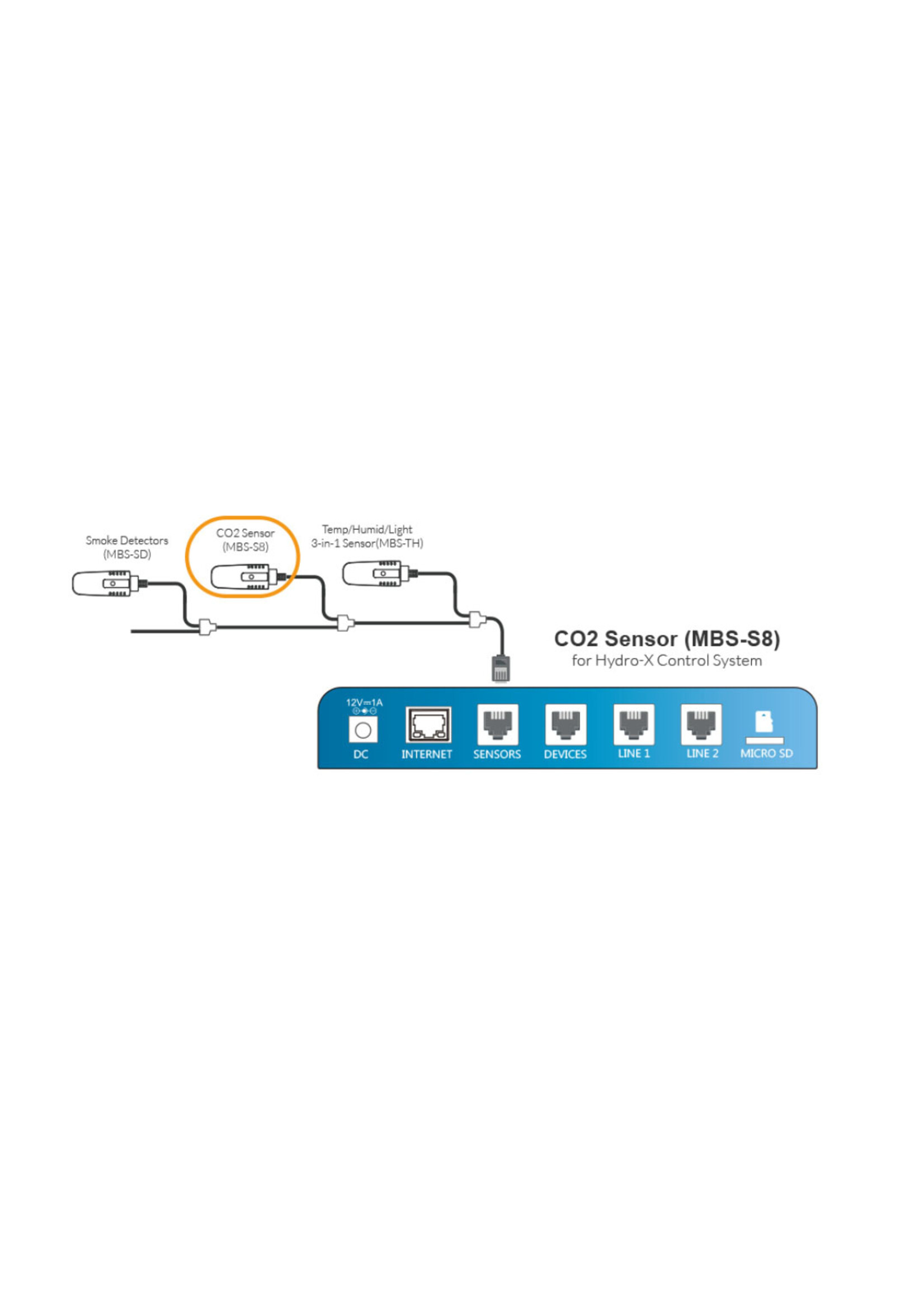

The optional CO2 Sensor (MBS-S8) measures the CO2 PPM within the growing area. Using the MBS-S8 allows the users to connect and control their supplemental CO2 system using the Hydro-X. *Used in combination with one or more DSC-1 CO2 device modules.

  "Sensors should remain dry and clean to prevent premature failure. Do not spray foreign substances or allow water / condensate on the sensors"

Built-In Photocell Detecting Day/Night Mode

Plug & Play

1 x CO2 Sensor (MBS-S8)

1 x 16ft RJ12 Cable

1 x RJ12 T-Splitter

Output Voltage:                           0~11.5V

Maximum Current:                       0.2A

Working Environment:                 Temperature 32-122°F, Humidity=90%

Package Dimensions:                  160mm(L) x 86mm(W) x 86mm(H)

G.W. per pack:                            0.37kgs

Cut Sheet
