PRODUCT ADVANTAGES
-Highly effective multiple disc ring design captures and holds more debris.
-Greater holding capacity of the rings vs. screen filters mean less frequent cleaning.
-Rings are easily removed for fast cleaning without the need for scrubbing.
-Color-coded disc rings make identification of mesh rating fast and easy.

THE FILTERING PROCESS
Grooved, compressed plastic disc rings produce a deep filtration process. As dirty water is
pumped into the filter and pressure increases on the outside of the filter, the water pressure
compresses the rings together tightly. Grooves in the disc rings crisscross, forming a three dimensional network that traps particles. The number of crisscrossed intersection points
on each groove varies, depending on filtration grade. The turbulence in the varying paths and
the large number of intersections create an environment where particles are eventually trapped.
This design filters the dirty water thoroughly, not only on the outer surface of the cylindrical disc
filter, but through the entire depth of every ring’s grooves. The result is a larger, more efficient
filtering area (when compared to screen filters) with more debris being captured and cleaner
water exiting from the filter.

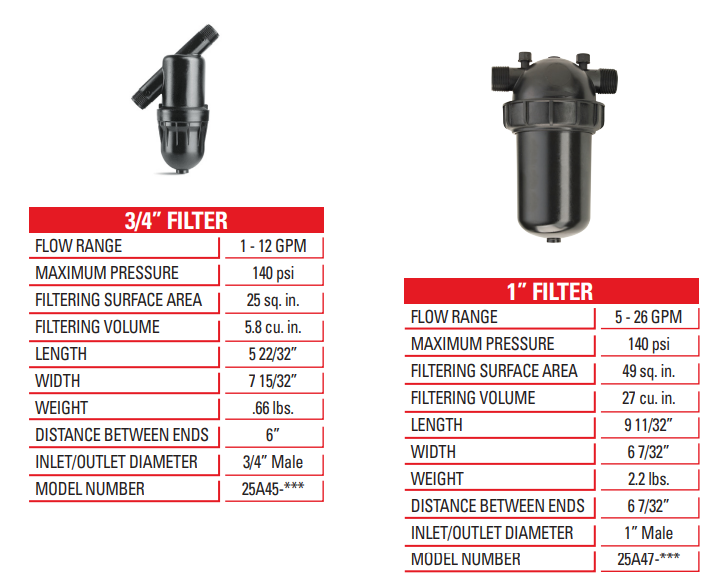

FILTER SPECS and OPTIONS
