• Industry Leading Pressure Rating
  Get maximum performance and durability with our industry leading pressure rating and pullout resistance.
• Warranty Ensures Confidence
  Specifiers, contractors and distributors will have peace of mind with our warranty – 10 years for subsurface installations and 5 years for surface installations.
• Size Range Flexibility
  16mm and 17mm outside diameter size range simplifies the job for designers and contractors.
• Visually Appealing Color
  Dark brown color blends well with both the dripline and surrounding landscapes.

FITS

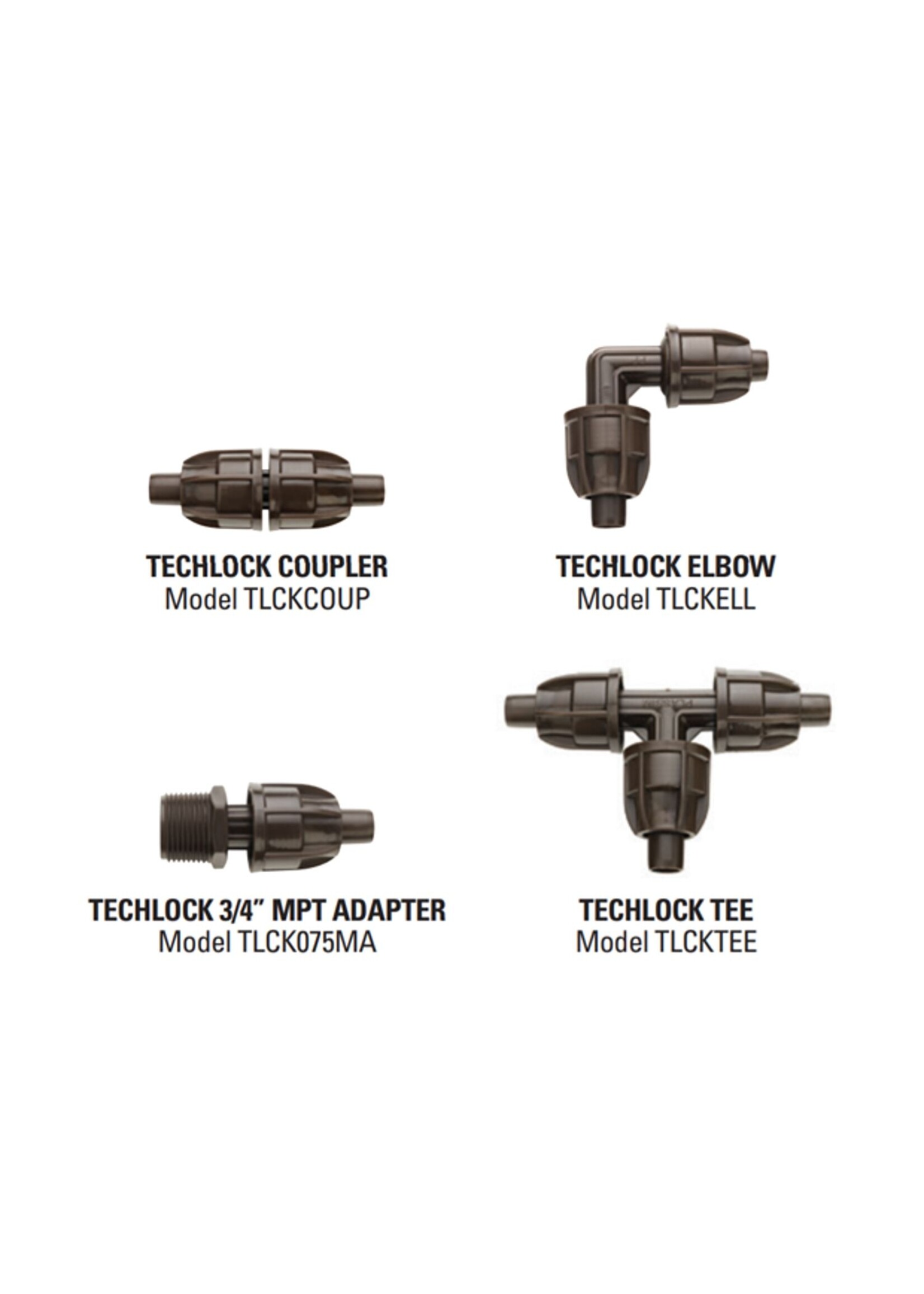

• Fits Techline HCVXR, HCVXR-RW and RWP, CV, DL, RW and RWP driplines, and PE tubing

SPECS

• Tubing internal diameter: 0.530” – 0.560“
• Tubing wall thickness: 0.035” – 0.050“
• Tubing outside diameter: 0.600” – 0.660“
• Working temperature range: 32˚ F – 140˚ F
• Operating pressure: 0 to 100 psi
• Pull-out resistance: 67 ft-lbs.
• Warranty:
  10 years for below ground (subsurface) installations
  5 years for above ground (surface) installations
