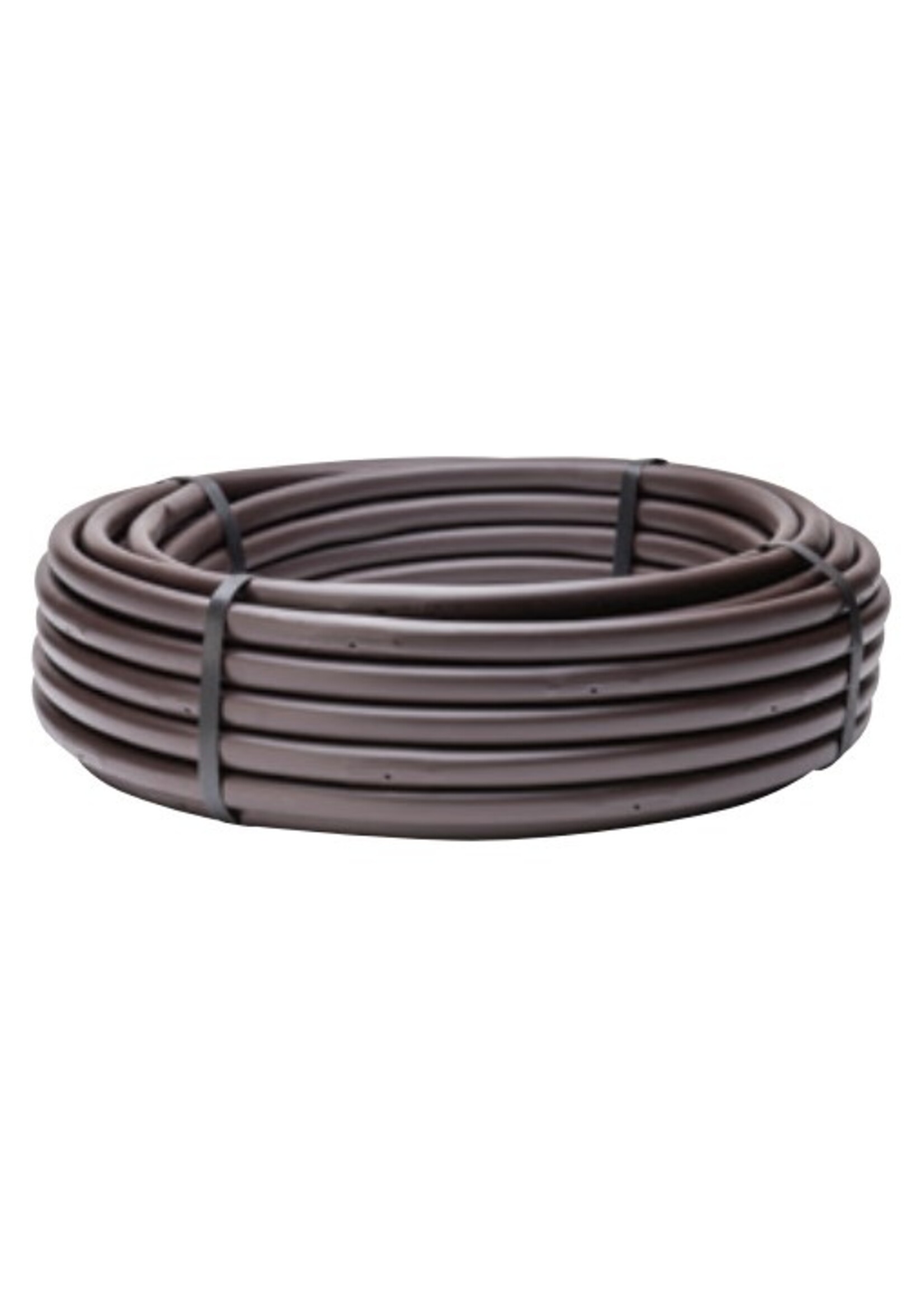

Netafim Techline Copper 1/2 Inch Brown Dripline

Cupron® copper oxide-based technology is infused directly into both the emitter and stripe of the dripline through a patent-pending process for maximum performance. The integration of copper oxide in the external stripe and internal emitter and the unique patented emitter design with physical root barrier and large filtration bath area provides three levels of protection, giving your system the best defense against root intrusion.

YOUR BEST DEFENSE AGAINST ROOT INTRUSION WITH THREE LEVELS OF PROTECTION

MAXIMUM DEFENSE AGAINST ROOT INTRUSION

Roots are one of the biggest threats against a high performing drip system, they can enter the outlet hole and emitter reducing or blocking flow. Cupron® copper oxide (CU20) technology effectively deters roots from entering the dripline. During manufacturing, the copper oxide is infused into the emitter and stripe of the dripline through a patent-pending process which ensures that the copper will remain embedded for the life of the product. It will not wash off, wear off or leach out.

TECHLINE™ DRIPLINES ARE THE HIGHEST PERFORMING DRIPLINES IN THE INDUSTRY

Netafim Techline™ driplines provide a wide range of CV emitter options to address a variety of installation requirements from flat surfaces, slopes to subsurface.

Check Valve - High check valve holds back 8.5' of water for distribution uniformity
Anti-Siphon - Prevents debris from entering the emitter outlet at system shut-down. Surface and subsurface installations don’t require air relief valves
Pressure Compensating - Delivers precise, equal amounts of water over a broad pressure range
Continuous Self-Flushing Emitter - Flushes debris as it’s detected

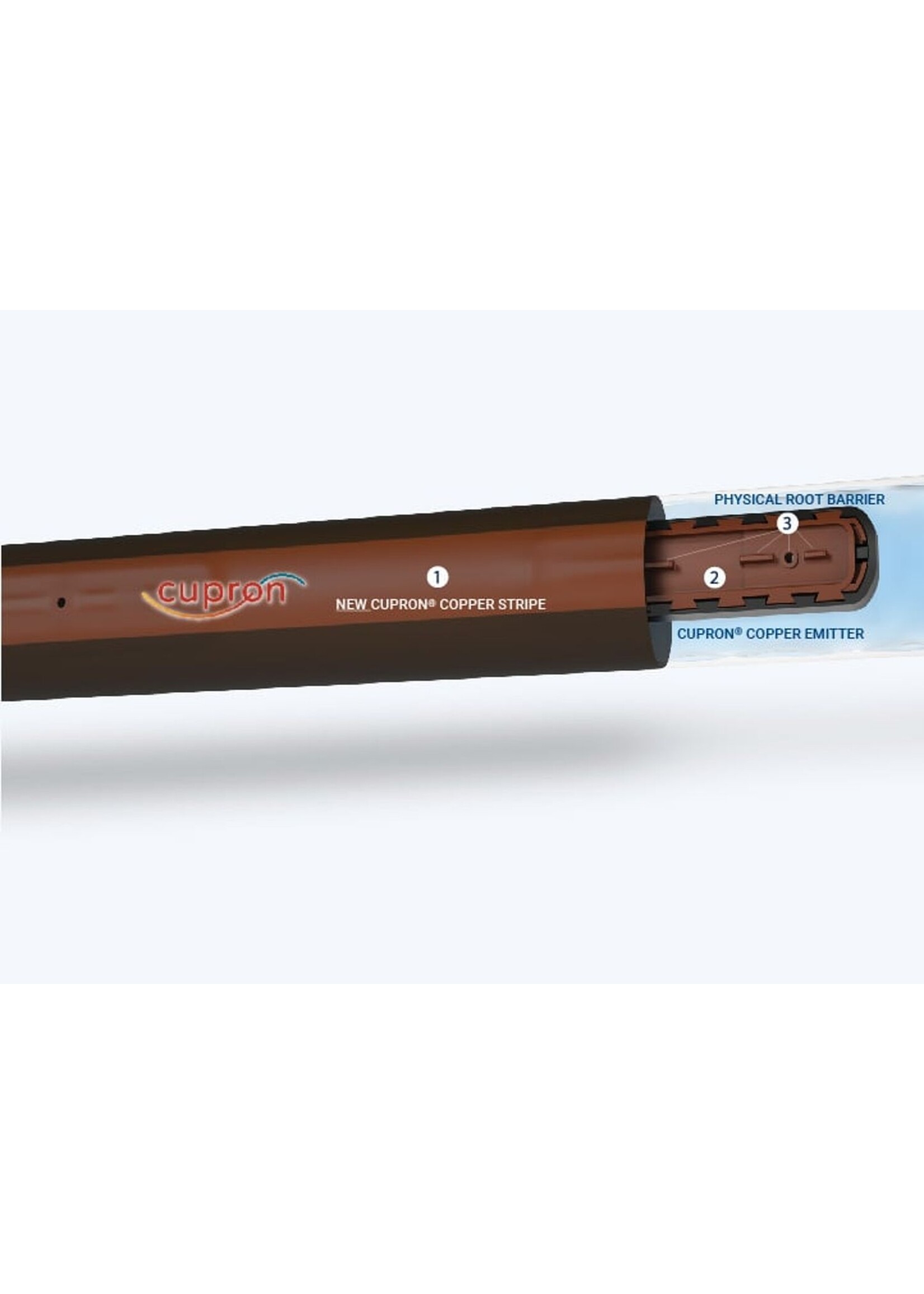

WIDE COPPER STRIPE SHIELDS AGAINST ROOT INTRUSION

Wide stripe design makes it easy to identify the dripline as Techline Copper
Embedded Cupron® provides a layer of defense against root intrusion
Cupron® copper oxide (Cu20) technology will not wash out, wear off or leach out. Remaining effective throughout the life of the product
Cupron® copper oxide is approved for use by the EPA ensuring peace of mind

POWER OF CUPRON® COPPER OXIDE ANTIMICROBIAL TECHNOLOGY

Copper is used in many industries for its antimicrobial properties and is recognized by the United States Environmental Protection Agency (US EPA) as the first antimicrobial metal. It is an essential nutrient for humans and bacteria, but in specific concentrations, it can serve as an antimicrobial agent.

Cupron’s proprietary technology is impregnated at specific concentrations to our patent-pending process ensuring it remains effective throughout the life of the product.

Applications

Subsurface or on-surface applications
Turf, shrubs, trees and flowers
Sports turf, tennis courts, golf courses
Slopes
Curved, angular or narrow planting areas
High traffic/high liability areas
Areas subject to vandalism
At-grade windows
Green walls, green roofs
Raised planters

Specifications

Emitter flows: 0.33, 0.53, 0.77 GPH
Emitter spacings: 12”, 18”, 24” (24” spacing available on 1,000 coils only)
Pressure compensation range: 21.8 to 58 psi
(SS clamps recommended above 50 psi)
Bending radius: 7”
Maximum system pressure: 58 psi
Minimum pressure required: 21.8 psi
Tubing diameter: 0.66” OD; 0.56” ID, 0.05” wall
Coil lengths: 100’, 250’, 500’, 1,000’
Recommended minimum filtration: 120 mesh
Diaphragm: molded silicon

Recycled Content

Techline Copper qualifies for LEED credit 4.2 as it contains a minimum of 20% polyethylene post-consumer recycled material.
